2024.12.03
Based on MediaTek MT7688 + Nordic 51822 display smart control box solution
The Wi-Fi + BT display smart control box solution is based on MediaTek MT7688 Wi-Fi and Nordic 51822 BLE4.0 chipset, users only need to establish a Bluetooth or Wi-Fi connection to access the device, push videos or pictures to the display through the mobile phone APP, and provide convenient remote control functions at the same time.

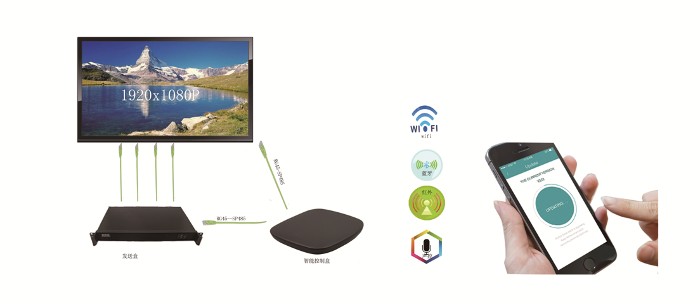

►Scenario application diagram

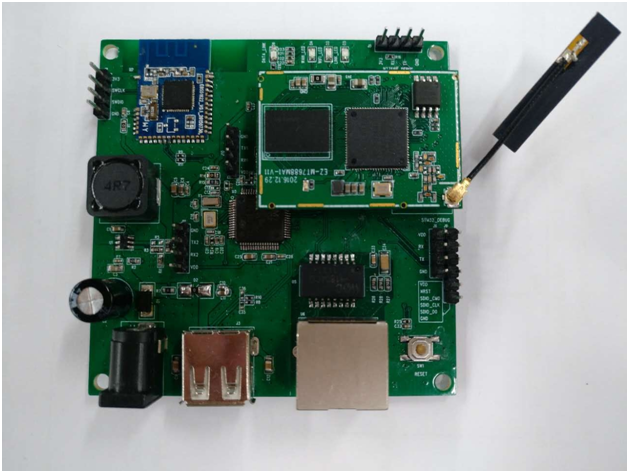

►Photos of display boards

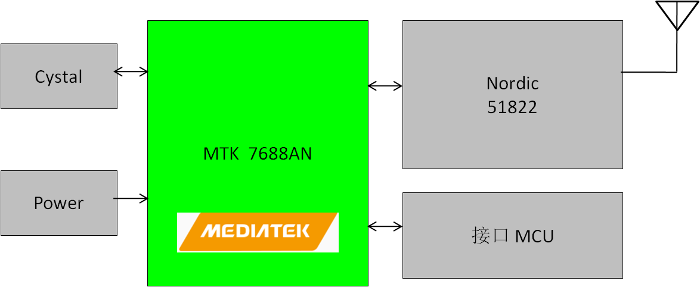

►Scenario block diagram
►Core technical advantages
(1) Based on MediaTek MT7688 Wi-Fi and Nordic 51822 BLE4.0 chipset solution
(2) Power:
Wi-Fi Tx：
802.11b：+19dBm
802.11g：+16.5dBm
802.11n：+15.5dBm
Bluetooth Tx: -20 to +4dBm
(3) Operating temperature: -40°C~+80°C
(4) Wi-Fi maximum wireless transmission rate: 150Mbps; Bluetooth maximum wireless transmission rate: 1Mbps
►Solution specifications
(1) Intelligent control
(2) Wireless transmission
