With the rapid development of WiFi, the role of home routers is becoming more and more important. Whether it is a mobile phone, a TV, a computer, or an IOT product, they are inseparable from the router, so the performance requirements of the router are getting higher and higher. The MediaTek MT7621 + MT7603 + MT7615 solution supports wired broadband access and LTE network access, supports IEEE802.11a/b/g/n/ac protocols, and provides 2300Mbps wireless access speed, fully ensuring that users' network data can be transmitted in real-time, long-term, stably and efficiently and improving user experience.

1. The SDK supports the Openwrt system, which is convenient for customers to customize the function. The MTK SDK is relatively mature in terms of routers, as follows

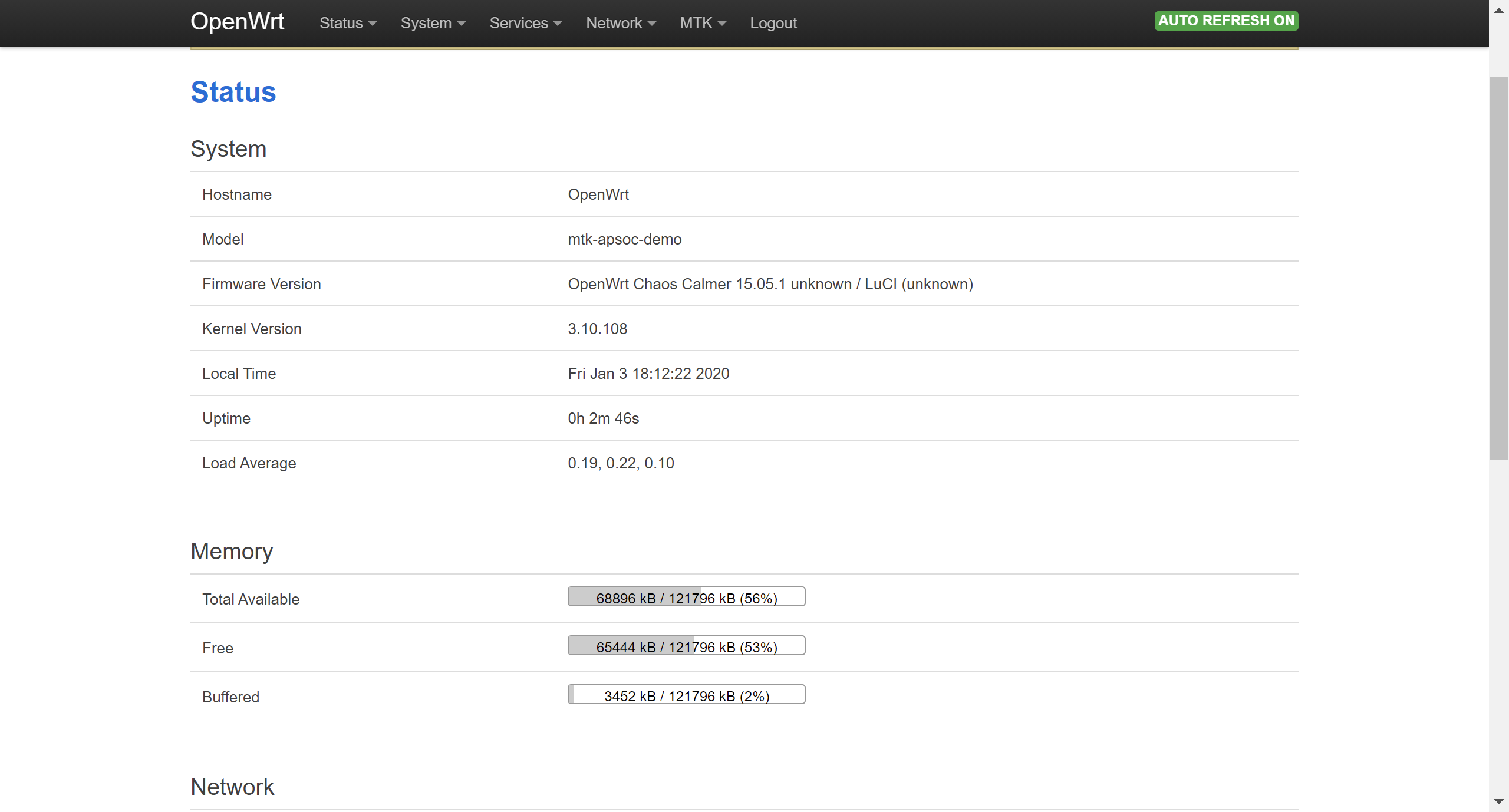

2. The SDK basic web page has been completed, and customers can carry out customized web design.

3. The upgrade can be upgraded through TFTP or web page

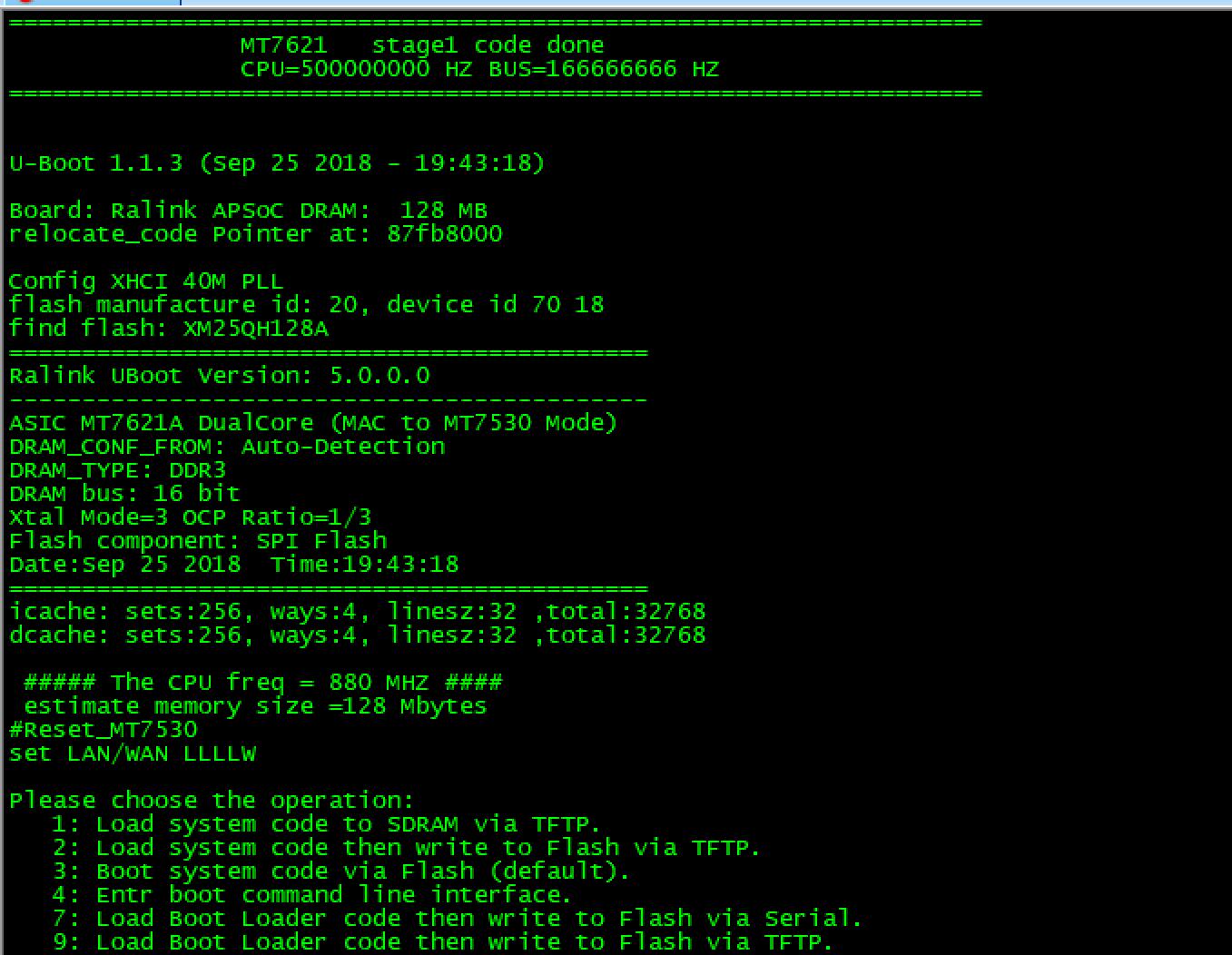

1) TFTP upgrade serial interface

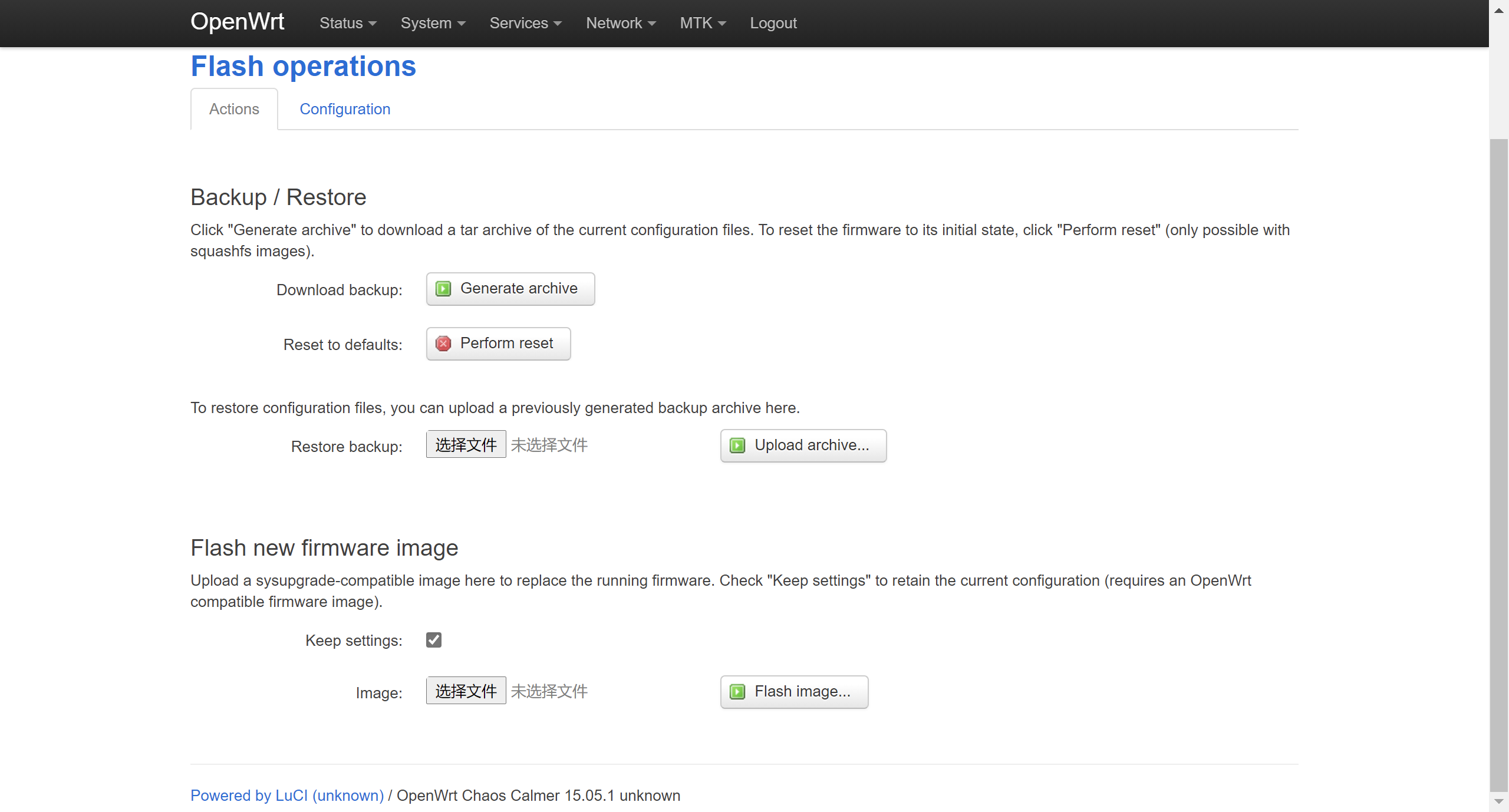

2) Webpage upgrade interface

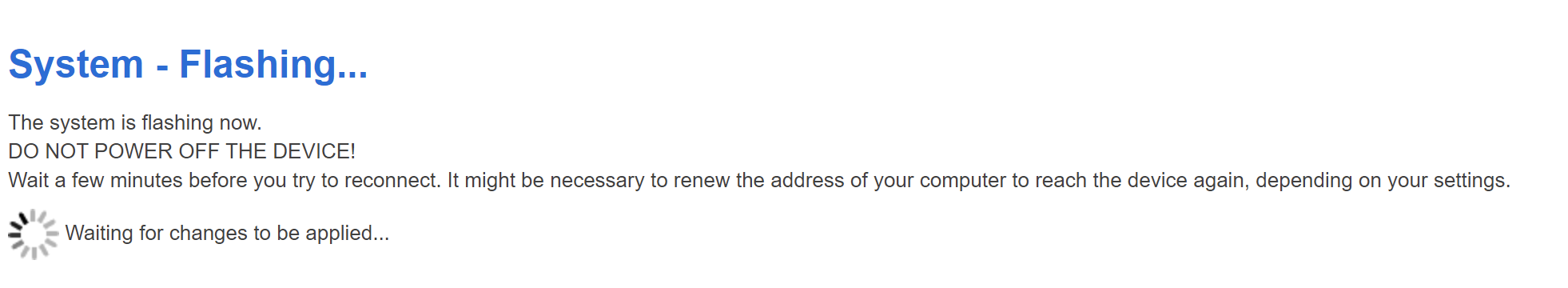

Upgrading

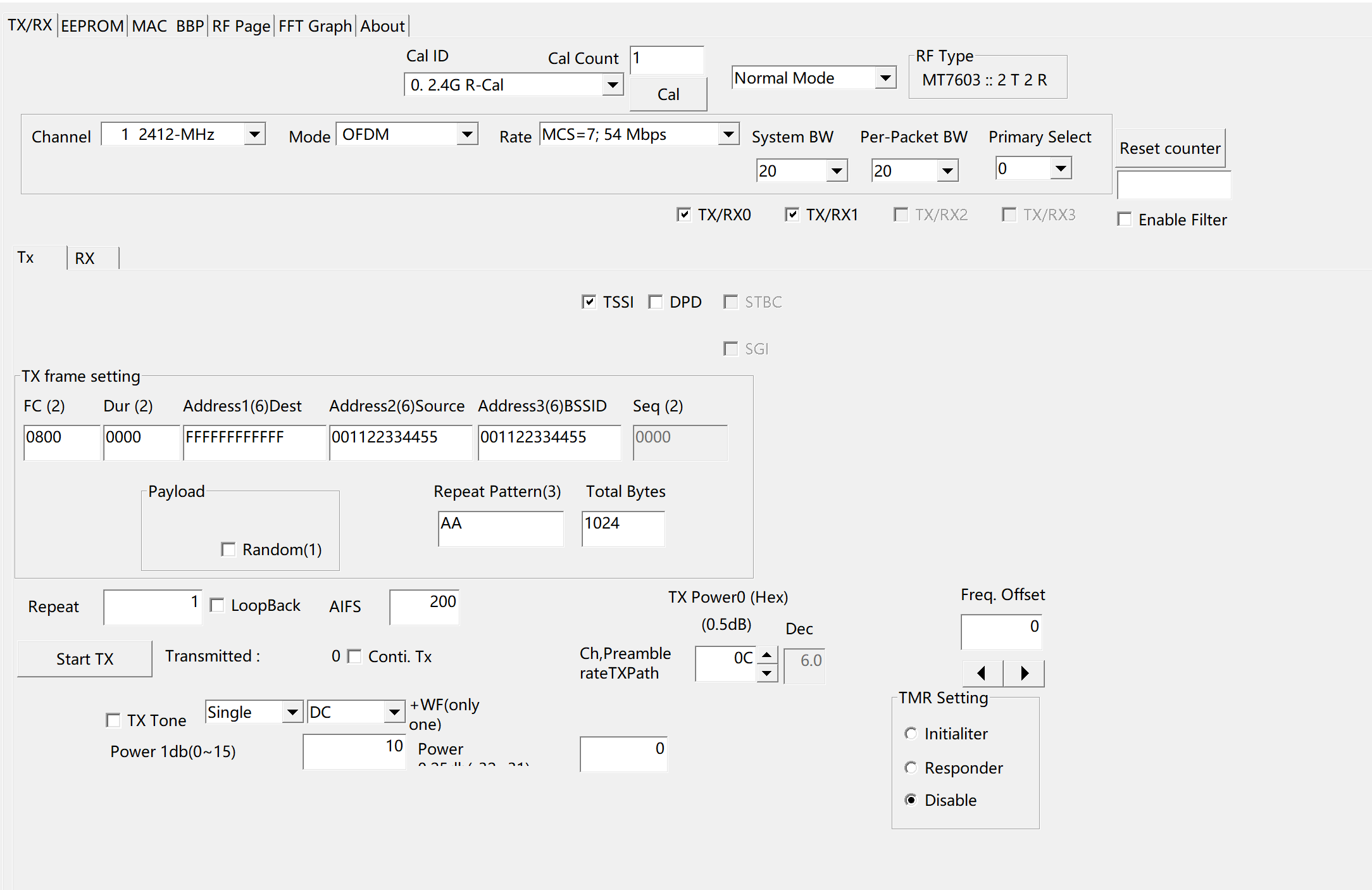

4. For WiFi, RF debugging is particularly important, and MTK WiFi R&D and debugging tool is QA-tool. It is very convenient in engineer development, and the interface is as follows:

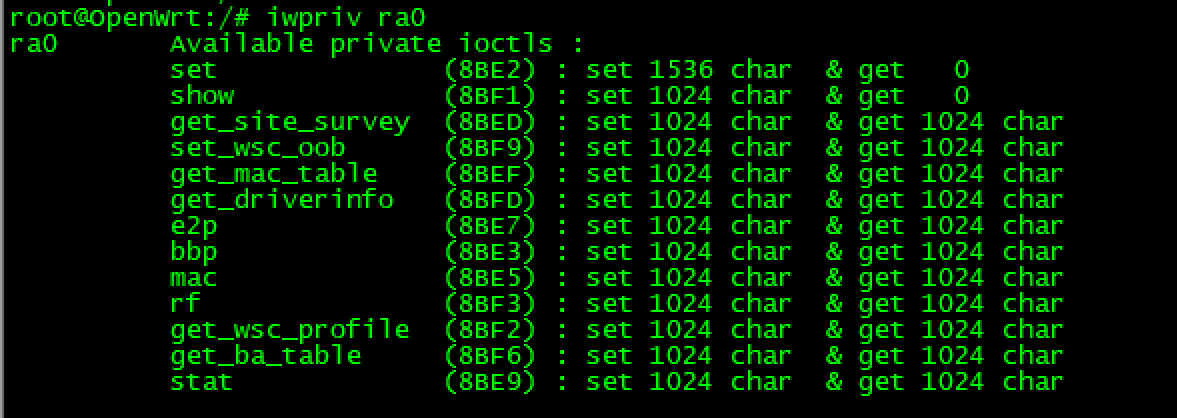

5. The serial port can adjust the WiFi parameters in real time through iwpriv.

►Scenario application diagram

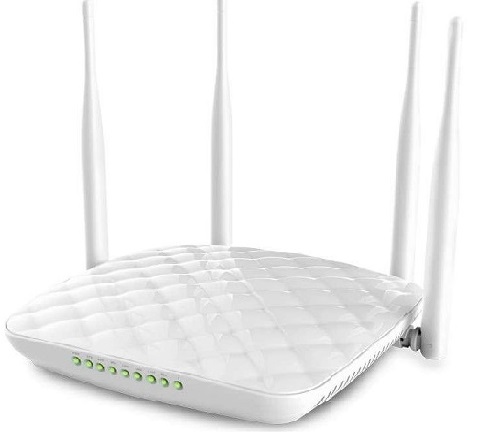

►Product Entity Diagram

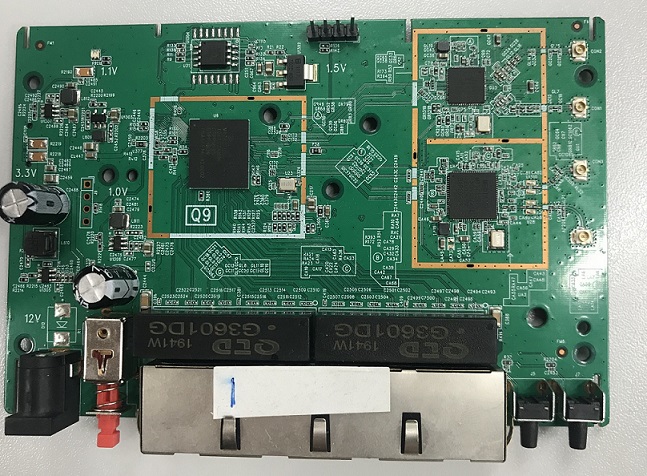

►Photos of display boards

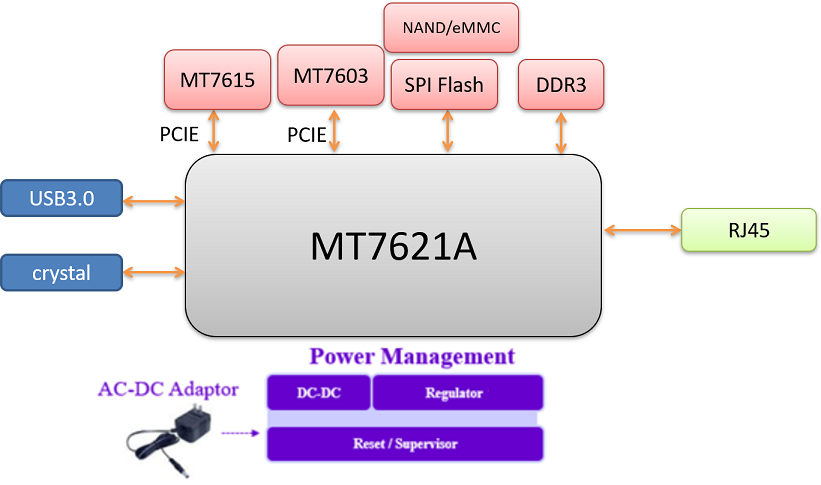

►Scenario block diagram

►Core technical advantages

1. Support WAP3

2.7615 supports MU-MIMO

3. Support Mesh

4.7615 supports DBDC

5.7615 supports 1733Mbps PHY rate

►Solution specifications

1. Wi-Fi IEEE 802.11b/g/n/ac 2.4G 5G 2. Serial Flash (128Mb) 3. DDR3  (2Gb) 4. 1x WAN port: RJ45 Connector, 10/100/1000Mbps 5. 4x LAN port: RJ45 Connector, 10/100/1000Mbps
