With the improvement of living standards and the increase of life pressure, the incidence of hypertension is getting higher and higher, and the resulting complications such as stroke, heart disease, hemangioma, kidney failure and other diseases have gradually become the main threat to human life. In fact, traditional mercury blood pressure monitors measure blood pressure most accurately, but because their operation requires a certain amount of expertise, it is difficult to popularize them in the home. Electronic blood pressure monitors that are convenient for measurement have also developed rapidly, but there are still many users who complain that the volume is too large, so is there a more convenient electronic blood pressure monitor? MediaTek introduces the AB1601+MT6381 portable solution. The biggest advantage of this solution is that it can measure 6 physiological data such as heart rate, heart rate variability, blood pressure trend, blood oxygen saturation (SpO2), electrocardiogram (ECG), and optical volume pulse wave wave (PPG) with only one chip, and can be integrated into smartphones, wearable devices and other terminals, and the measurement time is only about 60 seconds. The MT6381 hardware module highly integrates front-end signal processing, a variety of sensors, and other electrical and optical components. Through AB1601, the Raw Data is directly transmitted to the mobile APP through BLE, and the mobile APP realizes the processing of the Raw Data data and displays it directly in the mobile APPK.

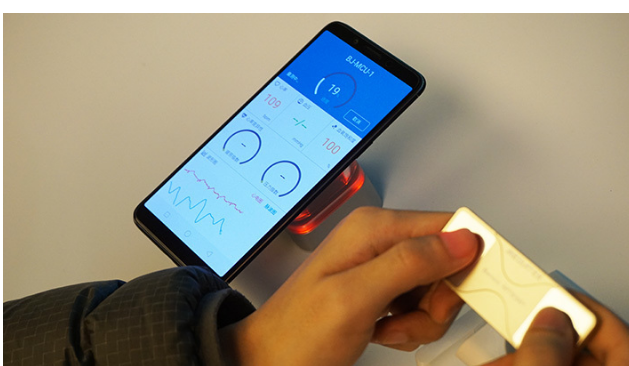

►Scenario application diagram

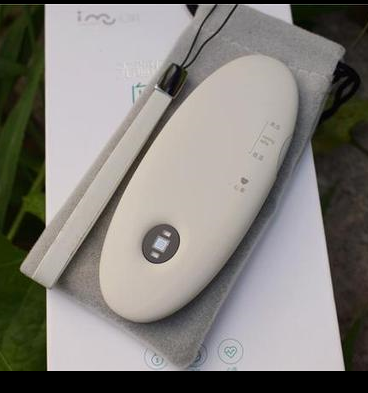

►Product Entity Diagram

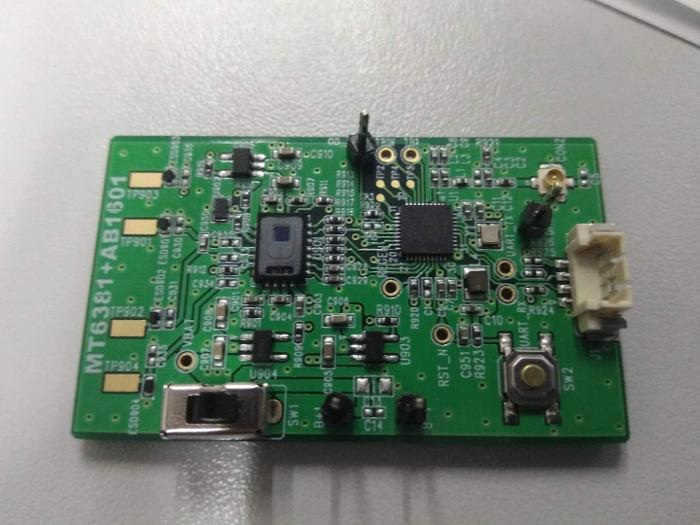

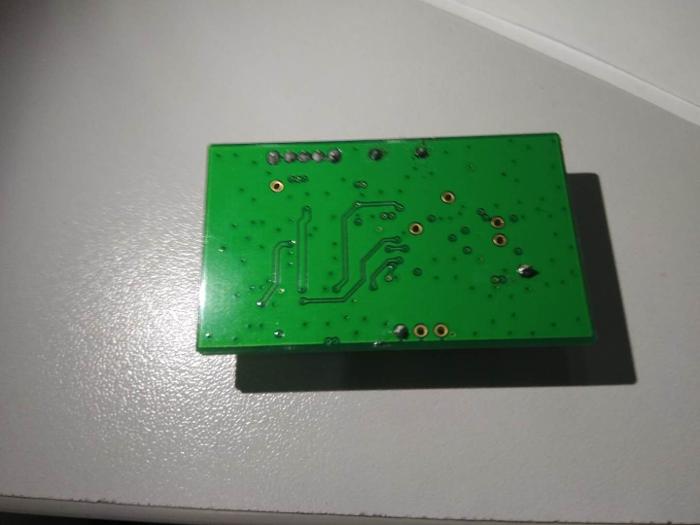

►Photos of display boards

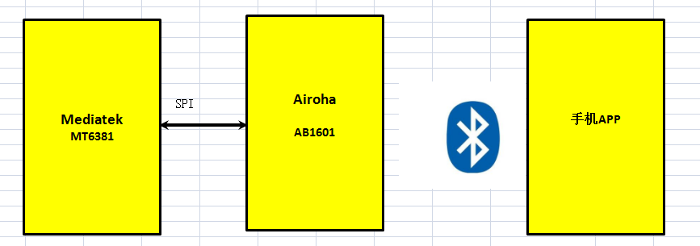

►Scenario block diagram

►Core technical advantages

(1) Highly integrated solution, including six algorithms, 3 sensors, two chips, and a set of LED lights integrated inside, no need for external LEDs, reducing the customer's PCB area;

(2) MediaTek provides HRV and HR algorithms, and the algorithms run on the APP side, and the device side only needs to provide data acquisition and sending, reducing the demand for the MCU on the device side;

(3) Usually in standby mode, only connected to the APP AB1601+MT6381 will work, humanized graphical interface display;

(4) Provide APK programming guidance and Source code to facilitate customers' secondary development;

(5) MediaTek partnered with Beijing 301 to collect more than 1,000 cases;

(6) The size of the whole PCB is less than 5cm*3cm;

►Solution specifications

(1) It can detect heart rate, blood oxygen, blood pressure, electrocardiogram and other up to six kinds of data;

(2) Bluetooth supports BLE4.2

(3) The transmission distance is greater than or equal to 1m;

(4) HR accuracy was 100%, SPO2 was 90%-100% Arms=1.32, BP Std.<19mmHg Mean Error< ±6.5mmHg, HRV Fatigue and Preeure Index, accuracy was 100%;

(5) The data acquisition time needs 60S;

(6) Support battery power detection, standby power consumption<10uA;
