The MediaTek X20-based smart development board is connected to the medical cloud solution

2024.12.03

Technical Blog

This is a cloud solution for telemedicine, which consists of the following four parts: a data acquisition module, a development board, a private cloud server, and a mobile device. The patient uses the BLE blood glucose meter to transmit the patient's physical index data to the development board through Bluetooth, and the customized APK in the development board will display the data and transfer it to the private cloud server through the wireless network, and the doctor can use the customized APK in the mobile device to access the private cloud server to obtain the patient's physical index data, conduct remote diagnosis and provide some medical consultation.

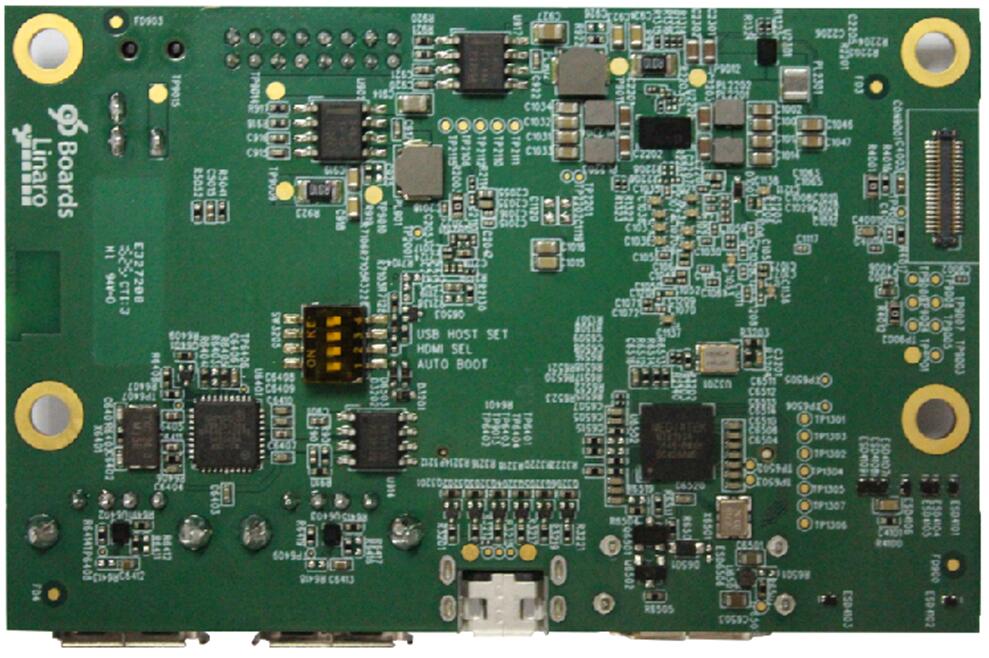

►Photos of display boards

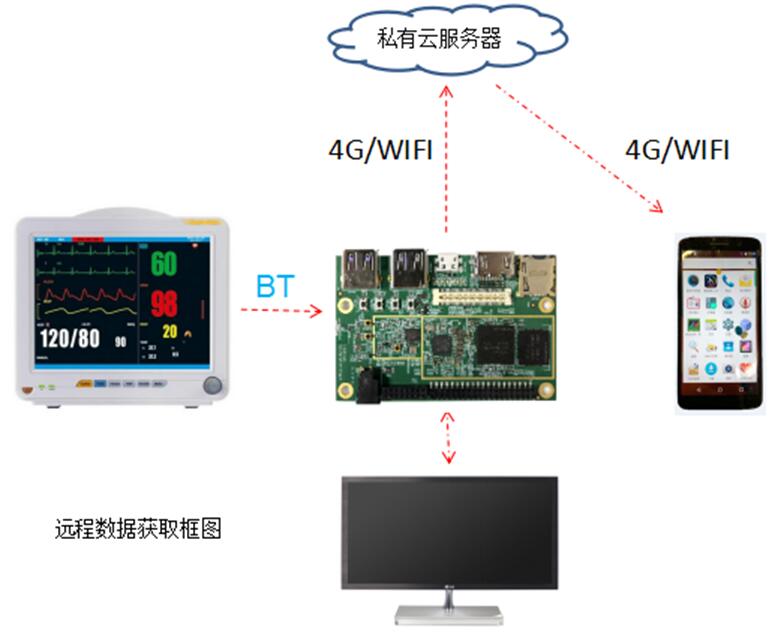

►Scenario block diagram

►Core technical advantages

1. Able to communicate with other devices via WIFI, 4G and BLE

2. It can be pre-installed with Android and APK to achieve interconnection with private cloud

►Solution specifications

1. MediaTek X20 10-core processor, the first smartphone processor with a triple cluster 10-core architecture up to 2.3GHz.

2. Rich expansion ports, such as 60-pin high-speed interface (4L-MIPI DSI, I2C x2, USB 2L+4LMIPI CSI), 40-pin low-speed interface (UART, I2C low-speed x2, SPI, GPIO simulation x12). The 96 board interpos kit can also be used to aid development during the development process, and the interposer is readily available and easy to use.

3. The platform includes 802.11a/b/g/n Wi-Fi 2.4GHz/5GHz dual-band options, as well as Bluetooth 4.1 wireless connectivity for fast, flexible, and convenient wireless connectivity. Support GPS for convenient development.
