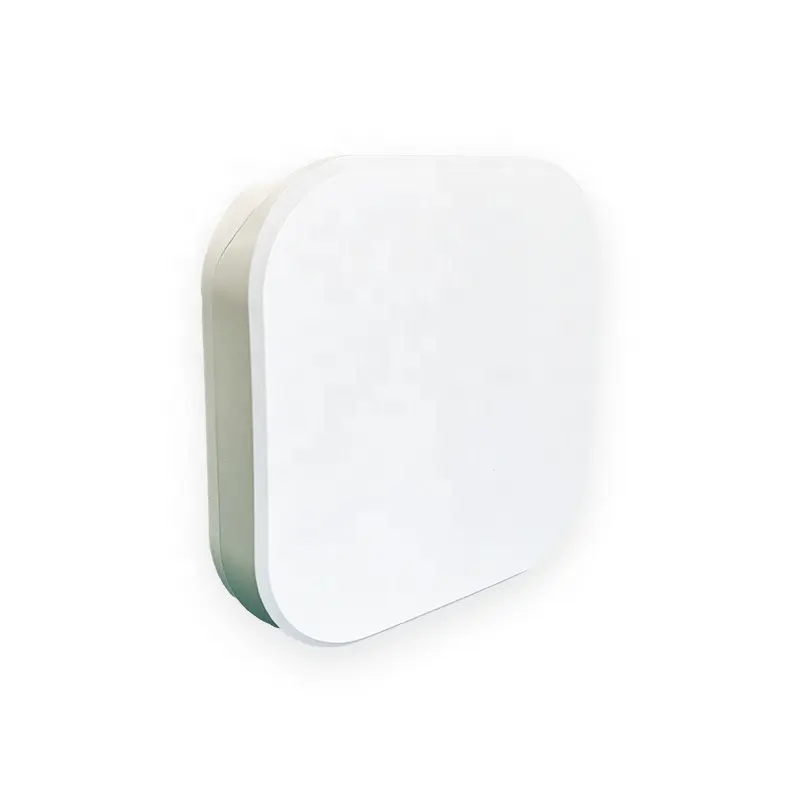

Model	ZC611A Indoor 5G WIFI6 Tri-band Ceiling AP/CPE Router
	Network	5G/4G (Internal Antenna)
	WIFI Standard	Wifi 6 802.11ax
	Chipset	IPQ5018+QCN6012+QCN6102+RTL8221+QCA8337
	Flash	128M
	DDR	512M
	Wireless Speed	5400Mbps
Hardware	Operating Frequency	2.4G 2×2 5G-1 2×2 5G-2 2×2
	Antenna	External antenna
	Physical Interface	RJ45 x 1(Support POE) Sim card slot x1
	Power Supply	DC12V, Support 9-36V wide voltage
	Power Consumption	50W
	Dimension	248*248*80mm
Software	- The software supports trunk, AP, and Client functions. - Supports fat and thin mode switching. - Supports AC management. - Supports Layer 2 optical or electrical port cascading. - Supports wireless cascading in trunk mode.

We are capable of designing and manufacturing Wifi 7, Wifi 6E and Wifi 6 routers, if you are looking for a reliable router solution provider, please contact u and send email to contact@edaltech.com

Related Products

	ZC711A	ZC711B	ZC612	ZC614A	ZC614B	ZC611A	ZC611B
Network	5G/4G	-	5G/4G	5G/4G	-	5G/4G	-
WIFI Standard	802.11be		802.11ax	802.11ax		802.11ax
Chipset	IPQ9574+QCN5124+QCN9274+AQR113C*2		IPQ6010+QCN5052+QCN5022+8075	IPQ5018+QCN6012+QCN6112+QCA8337		IPQ5018+QCN6012+QCN6102+RTL8221+QCA8337
Flash	256Mb+2Gb		256Mb+2Gb	128M		128M
DDR	8Gb x 2		1Gb	512M		512M
Wireless Speed	10Gbps (Max)		1800Mbps (Max)	5400Mbps (Max)		5400Mbps (Max)
Operating Frequency	2.4G 4×4 (1337Mbps) 5G-1 4×4 80M (2880Mbps) 5G-2 4×4 160M (5765 Mbps)		2.4G 2×2 5G 2x2	2.4G 2×2 5G 2×2 6G 2×2		2.4G 2×2 5G-1 2×2 5G-2 2×2
Antenna	Internal antenna		External antenna	External antenna		External antenna
Physical Interface	10G RJ45 x 2 10G SFP		RJ45 x 1 (support POE) Sim card slot x1	RJ45 x 1 (Support POE) Sim card slot x1		RJ45 x 1 (Support POE) Sim card slot x1
Power Supply	DC12V, Support 9-36V wide voltage
Power Consumption	50W		50W	50W		50W
Dimension	210*210*48mm		248*248*80mm	248*248*80mm		248*248*80mm
