The platforms of the MediaTek Genio family are already trusted by device manufacturers around the world on the product side to provide secure, robust, scalable, and high-quality solutions for a wide range of applications.

MediaTek Genio 700 is a high-performance Edge AI IoT platform for smart retail, industrial applications, and smart homes.

It also supports a variety of network connection methods to meet the needs of partners for a wide range of Internet such as Gigabit Ethernet, Wi-Fi 6 and 5G network modules.

The high-performance MediaTek Genio 700 supports multiple operating systems, including Yocto linux, Ubuntu OS, and Android, to meet the needs of new product development.

MediaTek Genio 700 EVK Introduction

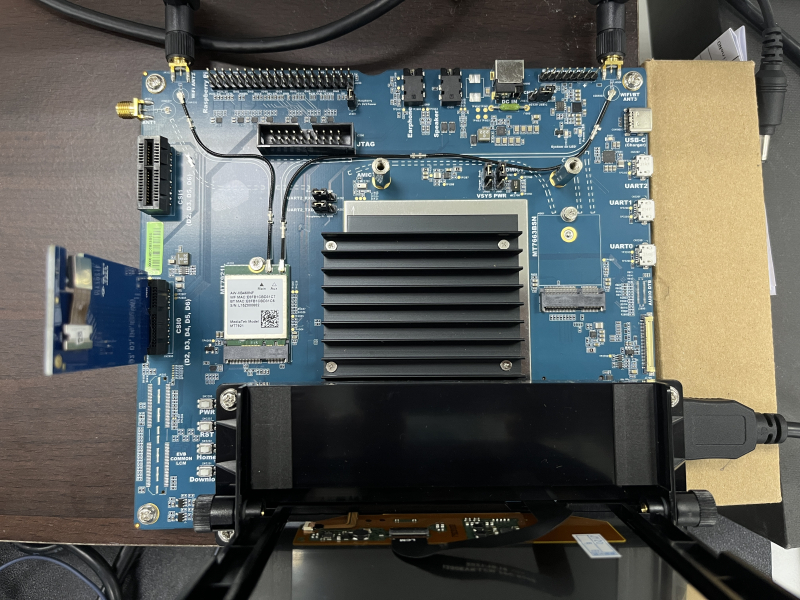

The picture shows a photo of the development board

Hardware specifications

CPU Type:

Arm Cortex-A78 x2 (2.2GHz)

Arm Cortex-A5 x6 (2.0GHz)

GPU Type:

Arm Mali-G57 MC3

AI Processor:

MediaTek APU(MediaTek Deep Learning Accelerator)

VP6

Max Display output resolution:

4K60 + FHD60

I/O:

PCIE 2.0

USB 3.1

USB 2.0 OTG

GbE MAC

ISP:

32MP@30fps

MediaTek Genio700 Use Cases Introduction:

Smart retail: digital billboards, desktop POS

Industrial applications: edge AI computing, IoT gateways, human-machine interfaces

Smart home: fitness equipment, smart home appliances

This solution mainly demonstrates the application of dual-screen asynchronous display, which can be applied to digital electronic billboards and human-machine interfaces. Dual-screen display means that the use of two monitors of different sizes and resolutions on an Android device allows partners to display different applications and content on two screens at the same time without interfering with each other, thereby improving work efficiency and multitasking capabilities, and reducing the cost of hardware in use. Different application solutions can be selected according to the user's needs and scenarios to achieve the best user experience.

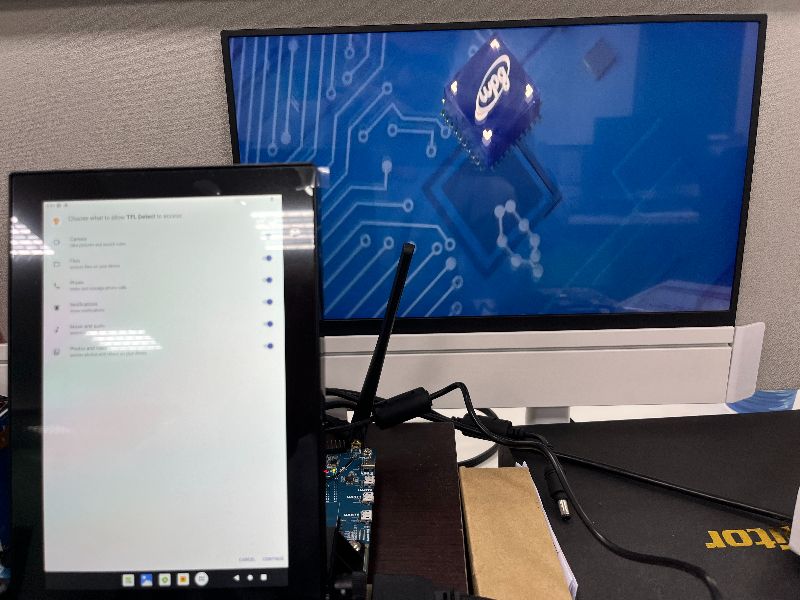

Next, I will show you the screen of performing dual-screen different displays.

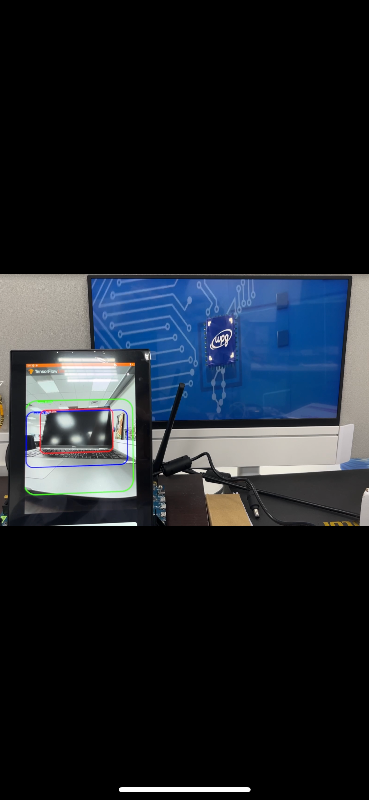

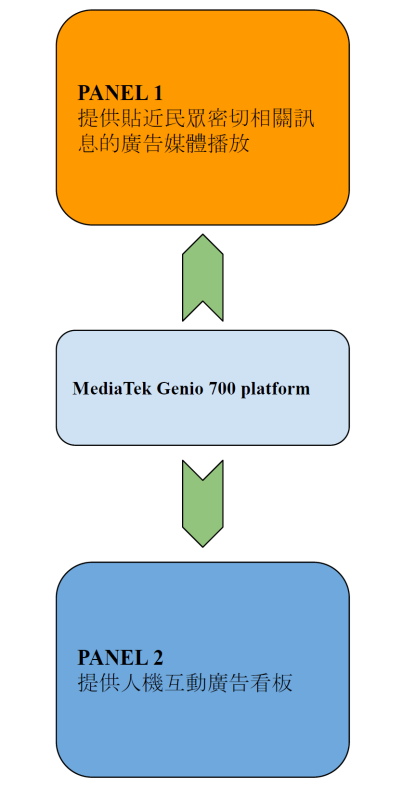

►Scenario application diagram

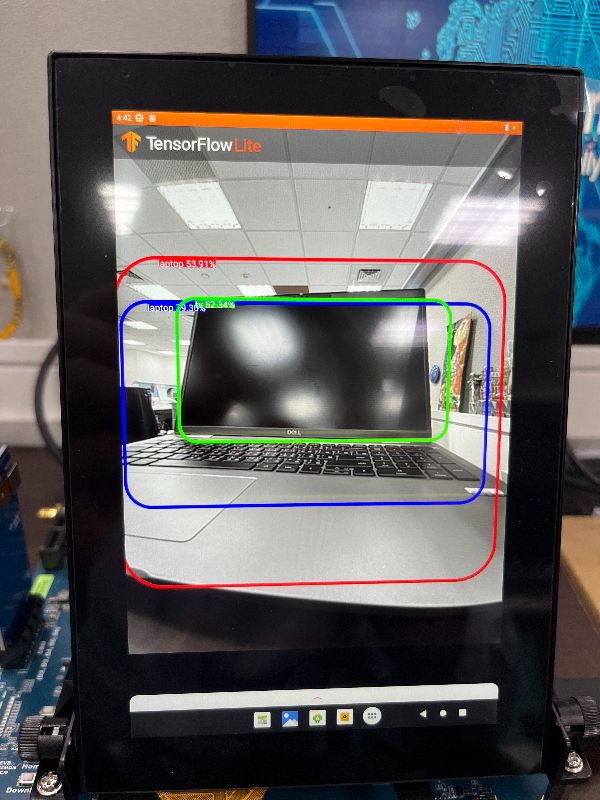

►Photos of display boards

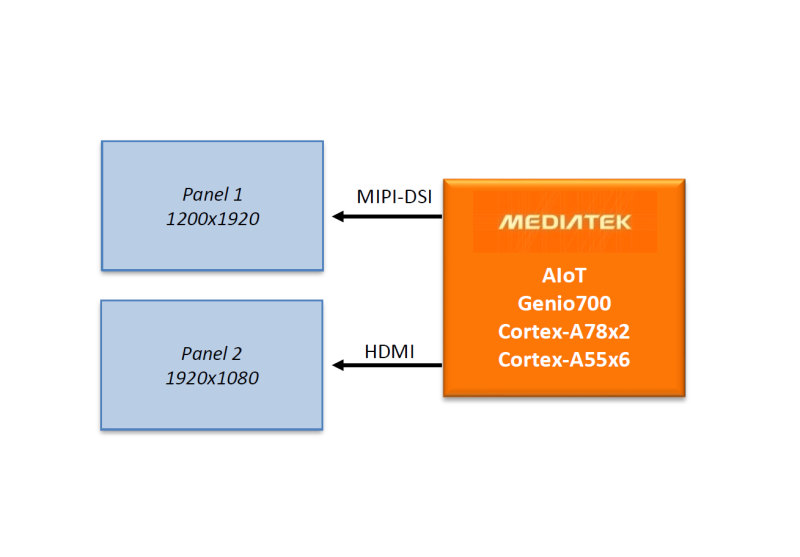

►Scenario block diagram

►Core technical advantages

The core technology is that the two screens can be controlled independently to achieve the simultaneous display of different content, which has the advantage of improving work efficiency, and the second screen can also provide more operating space and more information display.

►Solution specifications

The maximum simultaneous display output has a resolution of 4K60 + FHD60 MIPI-DSI HDMI
