In the Bluetooth audio product market. The Qualcomm platform is the high-end choice in this field. As an indicator to lead the direction of market development. Recently, Qualcomm S7 Pro Gen1 is the first new generation flagship platform that combines high-performance, low-power computing, end-side AI and advanced connectivity. Start a new era of audio innovation and create a breakthrough user experience. Setting a new benchmark for high-performance audio with ultra-low power consumption.

The first-generation Qualcomm S7 and S7 Pro platforms leverage unmatched levels of end-side AI to deliver advanced, personalized, and responsive audio experiences.

The new platform delivers 6 times the computing performance and nearly 100 times the AI performance of its predecessor, and brings a whole new level of ultra-flagship performance with low power consumption.

The Qualcomm S7 Pro is the first audio platform to support Qualcomm Extended Personal Local Area Network (XPAN) technology and ultra-low power Wi-Fi connectivity, extending the audio transmission distance in the home, building or campus, and supporting lossless music quality up to 192kHz.

Quan Ding Group also launched the Qualcomm S7 Pro Gen 1 platform TWS headset solution at the fastest speed for customers to choose applications.

The S7 Pro platform consists of two ics, QCC7226 and QCP7321. Among them, QCC7226 is the main control running user application, Bluetooth protocol,DSP audio data processing,AI algorithm platform. The QCP7321 provides WIFI transmission as a coprocessor and sends and receives master data through the SPI interface.

Software Implementation (windows platform)

1. Development environment setup (not detailed here)

      The necessary tools and codes can be downloaded and installed as required

        2.

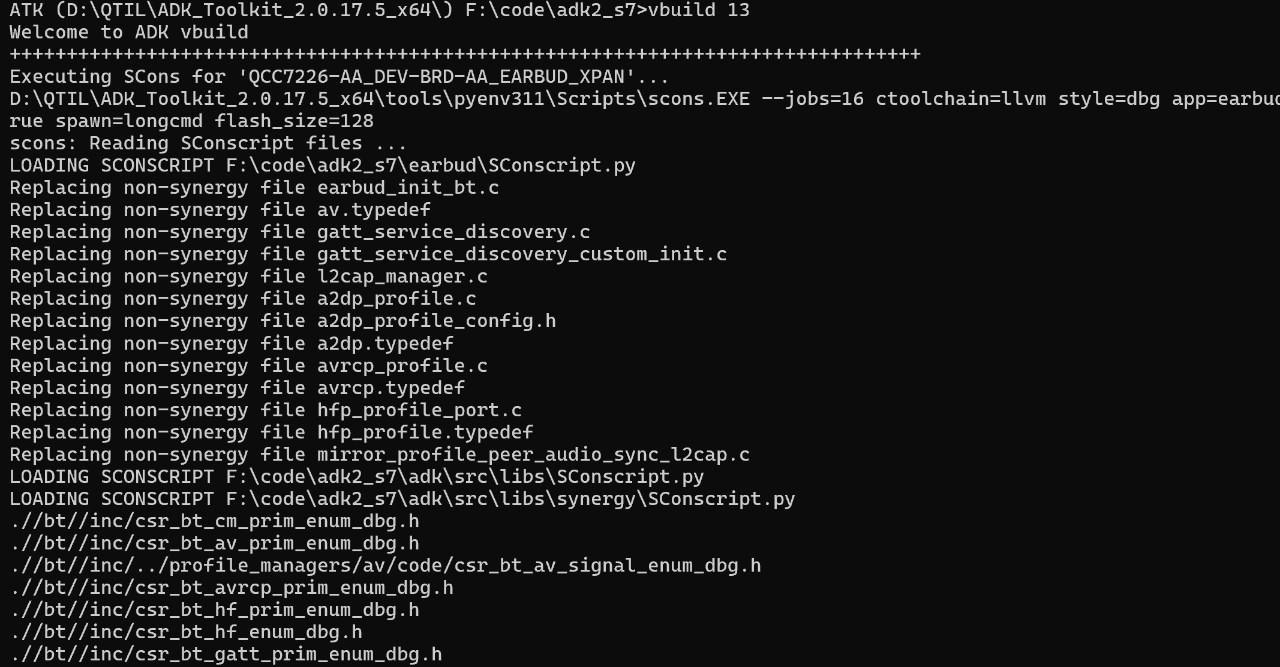

        Start compilation

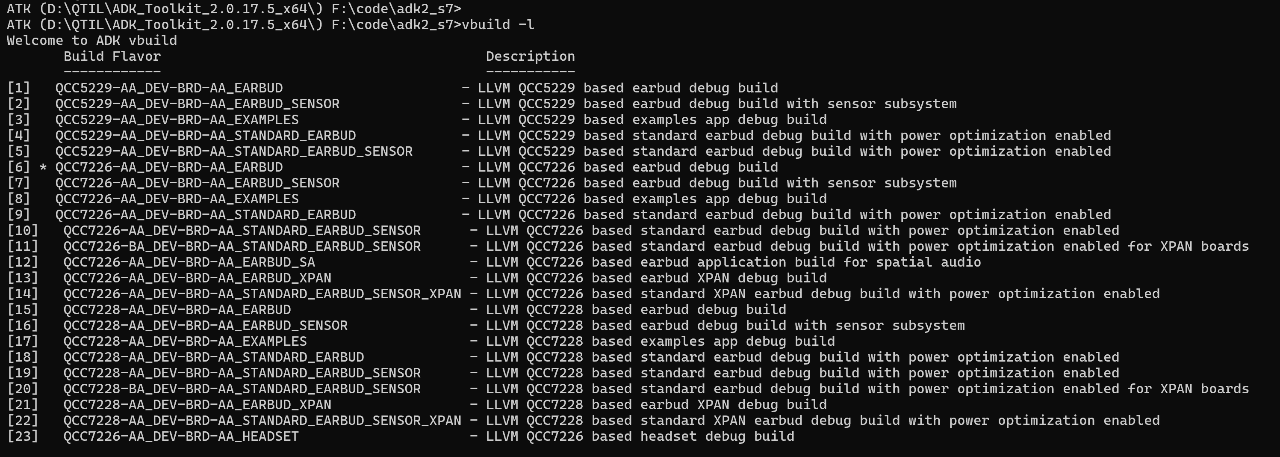

After starting the python311 environment, run the compile command to check the supported project configurations

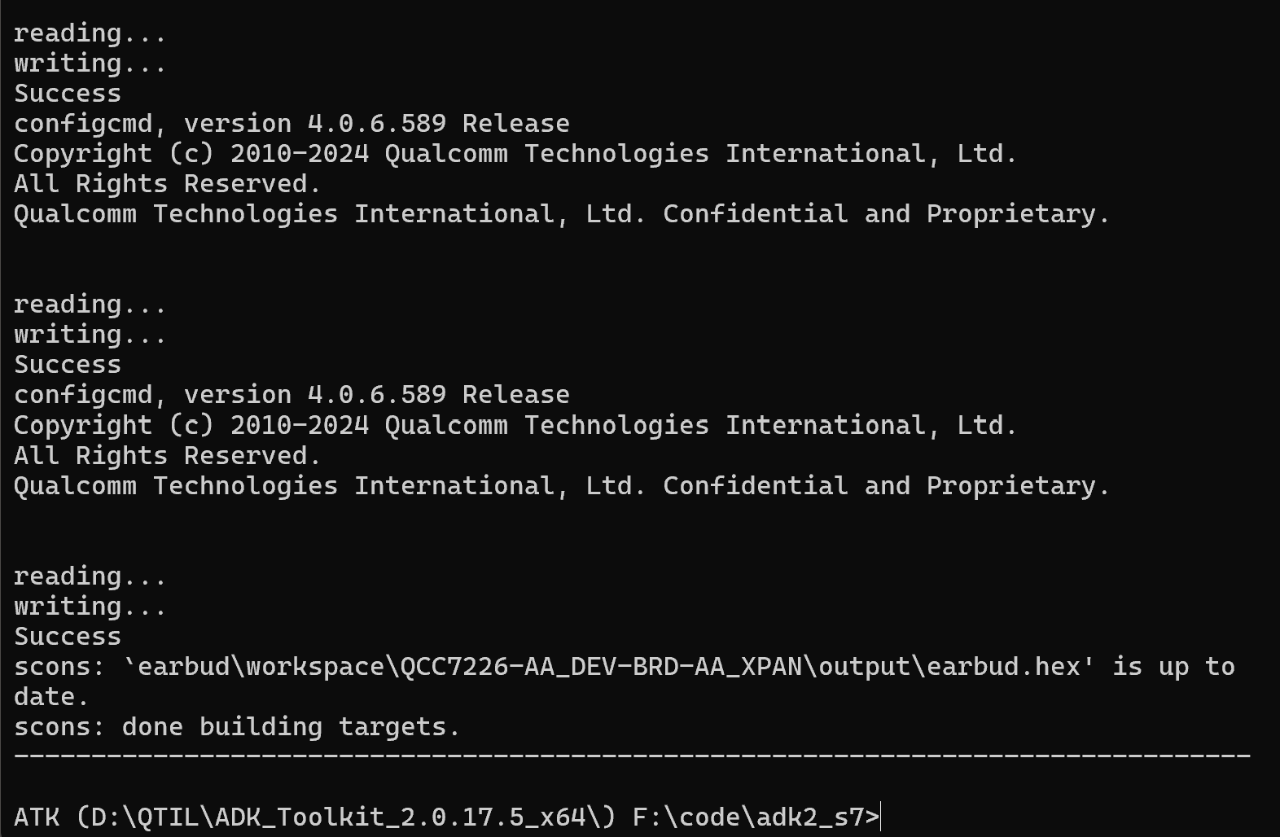

Complete compilation

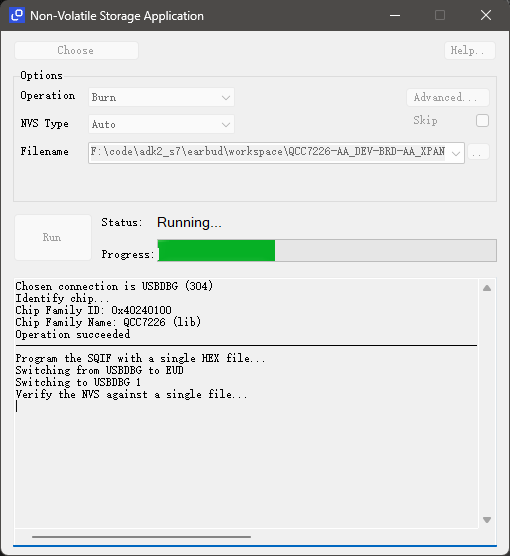

Connect USB and burn bin

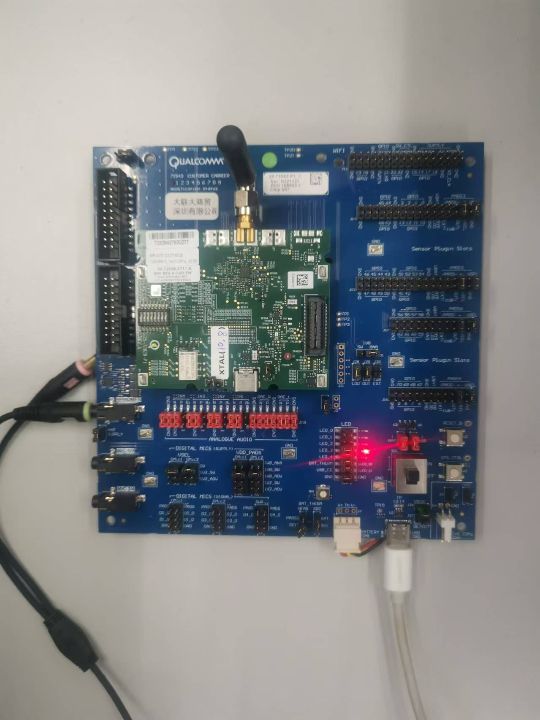

Power-on and power-on run normally, according to the different status of the prompt indicator

FAQ

1. What is special about development?

All operations must be performed after activate python venv is selected

2. How do I obtain the ADK doc?

Run the build_all_docs command and view it in the ADK Toolkit directory docs

3. Do you support external flash?

Currently, there is no relevant design support, and the built-in flash can meet most application scenarios

4. Can Wifi be used for other applications?

No, it can only be used as audio transmission. 1. What is special about the development?

All operations must be performed after activate python venv is selected

2. How do I obtain the ADK doc?

Run the build_all_docs command and view it in the ADK Toolkit directory docs

3. Do you support external flash?

Currently, there is no relevant design support, and the built-in flash can meet most application scenarios

4. Can Wifi be used for other applications?

No, it can only be used as audio transmission

►Scene application diagram

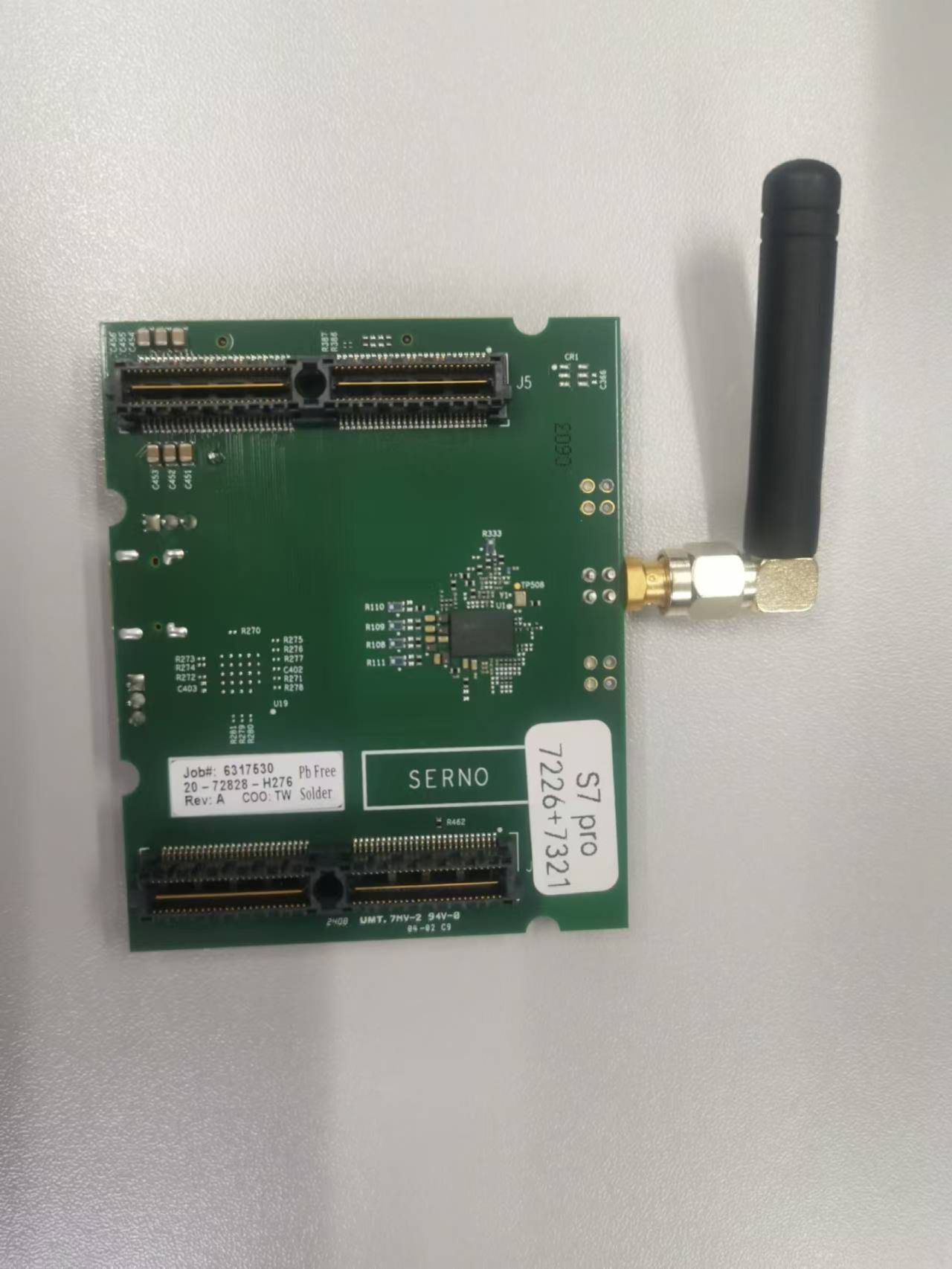

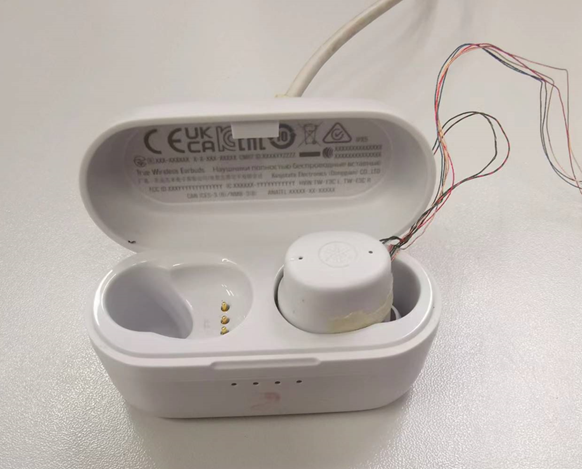

►Product physical drawing

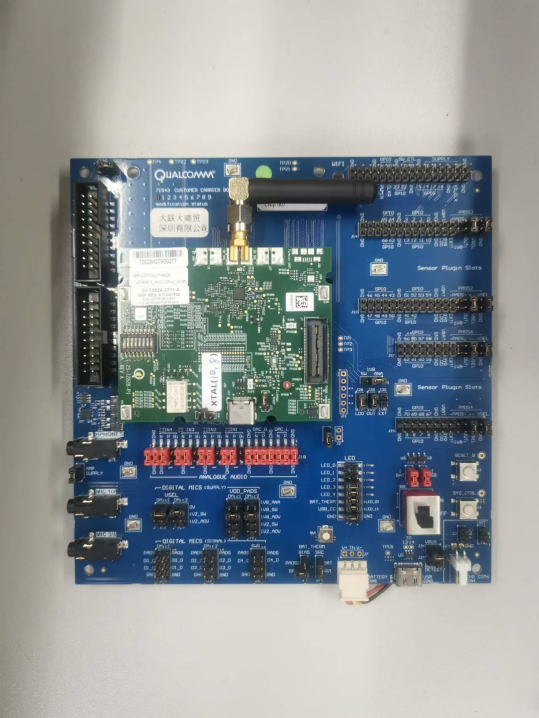

►Display Board

►Solution block diagram

►Core technology advantage

1. Fourth generation ANC noise reduction

2. Non-inductive switch Bluetooth WI-FI link,XPAN supports the whole house coverage

3. Hi-res audio, support lossless audio96k

4. AI algorithm enhancement function

5. Ultra-low power design

►Scheme specification

1. Multi-core collaboration, processing multiplication 2. Application Arm Cortex-M55 1X300MHz Support FPU 3. Sensor Arm Cortex-M4F  1X200MHz       Support FPU 4. AI: Qualcomm eNPU 64 GOPS DSP: 2x 500 MHz + 1x 250 MHz 5. WI-FI Spec 6. 1 x 1 dual band 2.4/5 GHz supporting 802.11a/b/g/n standards 7. Up to 28.9 Mbps 11n MCS3 HT20 data rate 8. Supports IPv4/IPv6, TCP, UDP,and TLS 9. Internal 128Mb FLASH 10. Supports Bluetooth coexistence 11. Supports USB high speed (480 Mbps) device 12. The software provides a variety of combination configurations to flexibly build various forms of Bluetooth audio products
