Integrate MediaTek MT7687 WiFi module and RT7075 ceiling fan control board, you can know the speed and status of the ceiling fan through your mobile phone. The cloud communication protocol uses MQTT, MQTT is commonly used in IoT products, and many well-known cloud services, such as Amazon, IBM, etc., also provide MQTT modules. Pinjia launched this development kit, which can help traditional home appliance customers to enter the smart home more easily, and customers can quickly develop and evaluate through this kit.

【APP UI】

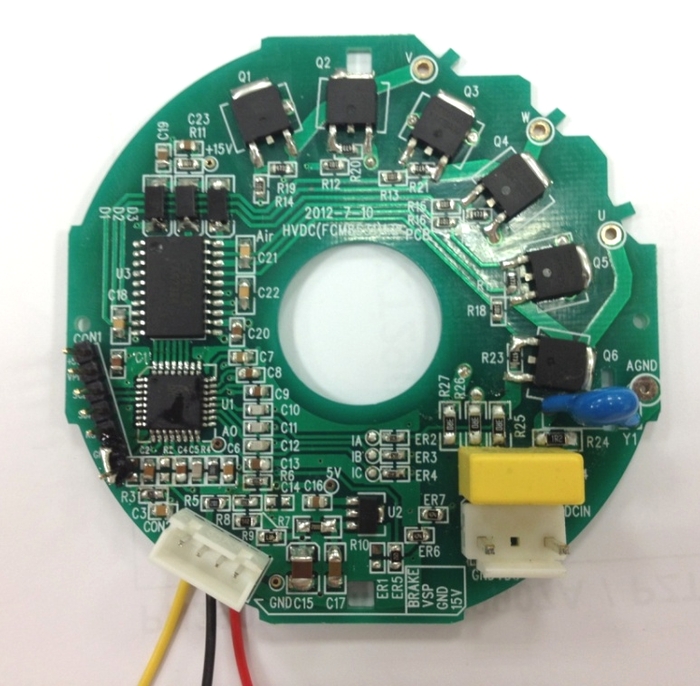

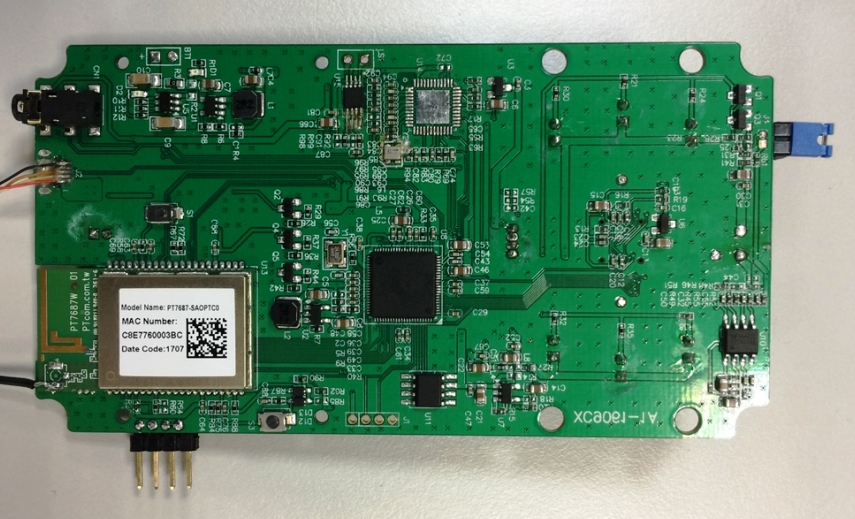

 ►Photos of display boards

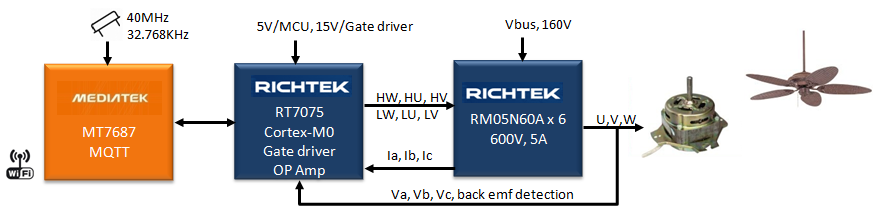

►Scenario block diagram

►Core technical advantages

(1) WiFi transmission

(2) The main control adopts a 32-bit microcontroller

(3) Working environment: -40°C---+85°C

(4) BLDC FOC control

►Solution specifications

(1) A 32-bit Cortex-M0 MCU is used as the main fan control, using the FOC algorithm

(2) 32-bit Cortex-M0 MCU is used as WiFi transmission management

③ MQTT
