In-vehicle positioner based on TI CC2541 + MediaTek MT6260

2024.12.03

Technical Blog

At present, the number of vehicles in the society is getting larger and larger, and the probability of vehicle loss is gradually increasing. The functions of a car location tracker generally include SMS positioning, timing positioning, network query, and remote locking of the vehicle's location. The overall scheme of CC2541+MT6260+G7020 can realize the miniaturized vehicle location tracker function, with the APP interface of the mobile phone, the real-time status of the car can be monitored at any time, and it is easy to assemble, and can be installed anywhere on the car. CC2541 is a very mature BLE solution chip on the market, supporting BLE4.0, MediaTek MT6260 is a mature GSM chip, which is simple and mature, and can quickly be converted from R&D to mass production.

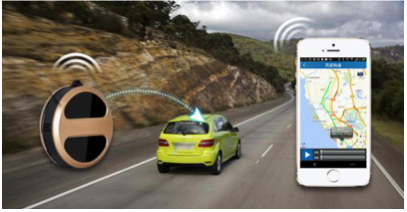

►Scenario application diagram

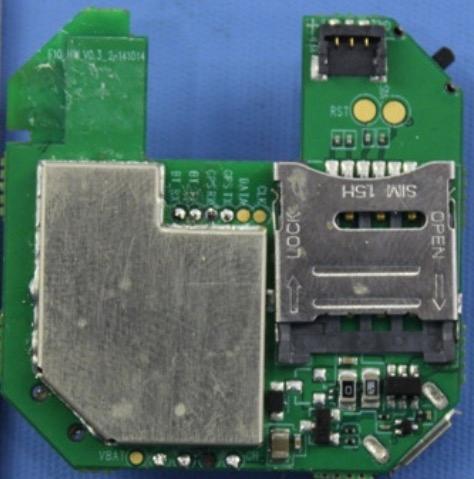

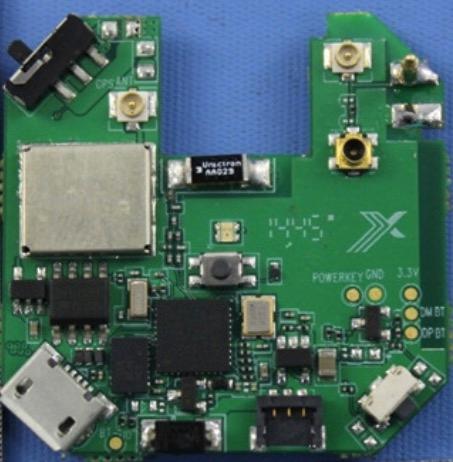

►Photos of display boards

►Scenario block diagram

►Core technical advantages

1. Mobile phone control: You can use a mobile phone instead of a remote control to control the car

2. Remote control control: You can use the remote control to directly control the car within 100 meters

3. SMS location: All you need to do is send a text message to the immobilizer on your car, and the immobilizer will send back a message to tell you the approximate location of your car

4. SMS alarm: If there is an alarm, it will automatically send a text message to the car owner to call the police

5. Remote alarm: If there is an alarm, it will automatically call the owner's mobile phone

6. Anti-robbery alarm: If you encounter robbers while driving, the owner can step on the buried dark switch to call for help
