MediaTek's new wireless connectivity system, the Genio 130A (MT7933), integrates a microcontroller (MCU), WiFi 6, Bluetooth and a power management unit (PMU). The Genio 130A's highly integrated design provides energy-efficient, reliable, and efficient network connectivity for small form factor devices, making it the best choice for a wide range of IoT devices. Support SPI, I2C, I2S, SDIO, USB, UART and other interfaces, and can plug a variety of peripherals. This solution realizes communication with the game console through WiFi, BT, and USB, and has three connection options, which is more free.

The following describes the debugging tools and methods used in solution development

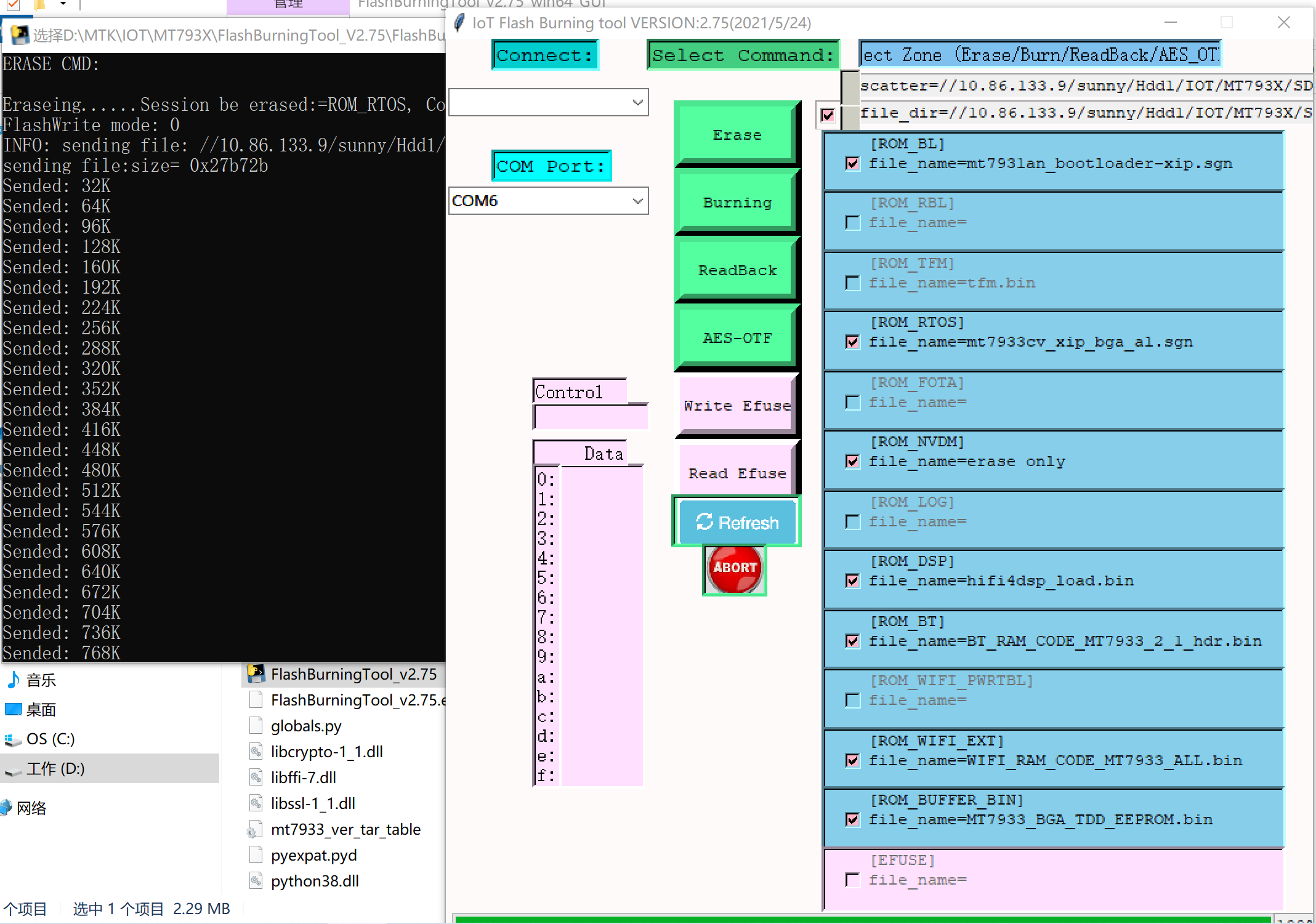

1. Use FlashBurningTool to download the firmware, and the interface is as shown below

2. About RF calibration

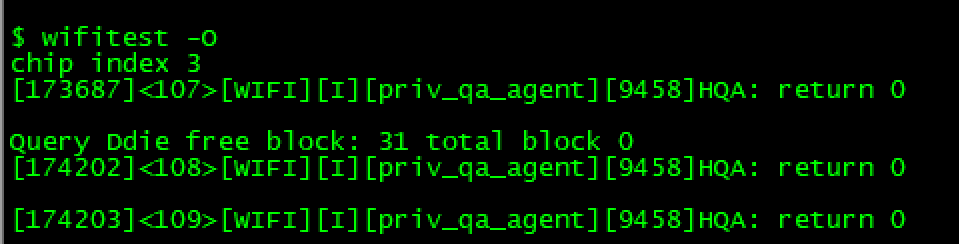

1) Enter wifitest through the serial port for WiFi test

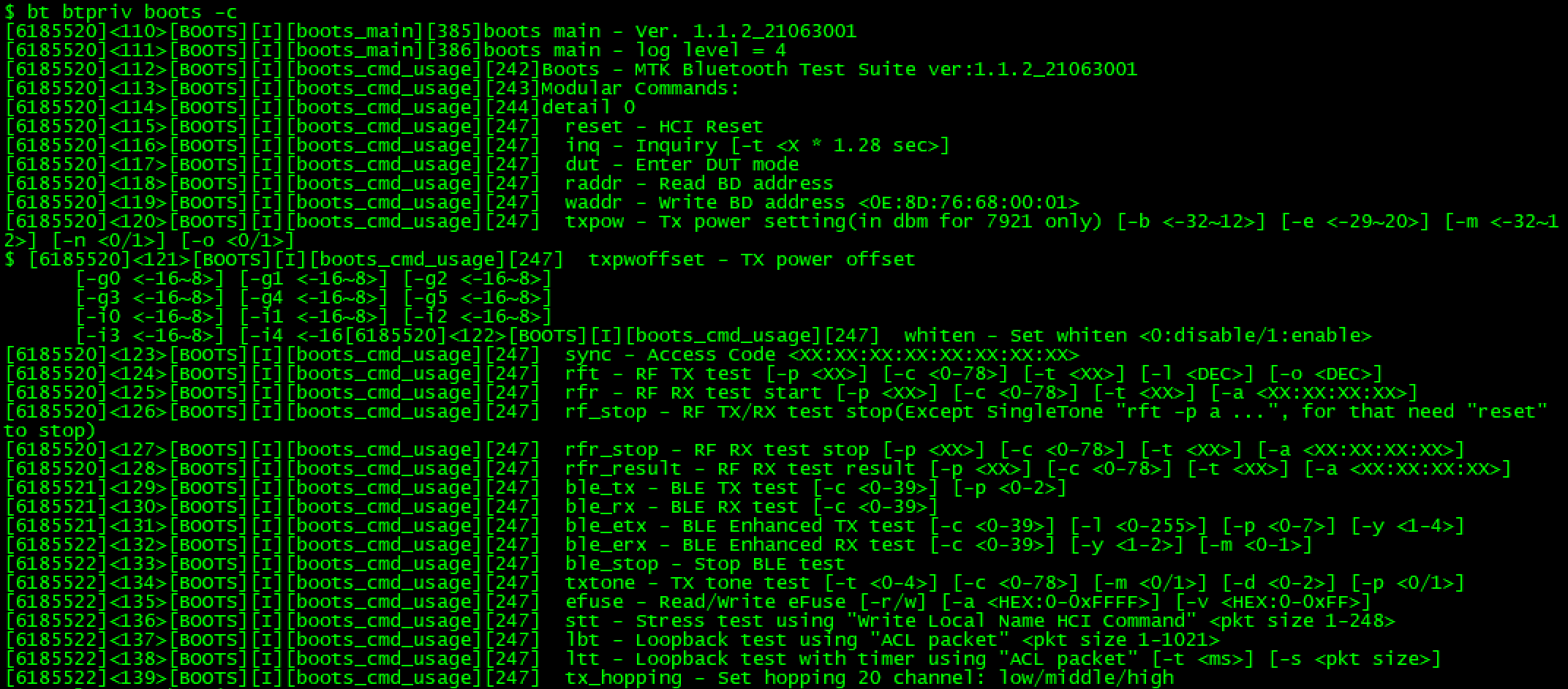

2) Enter the boots through the serial port for Bluetooth test

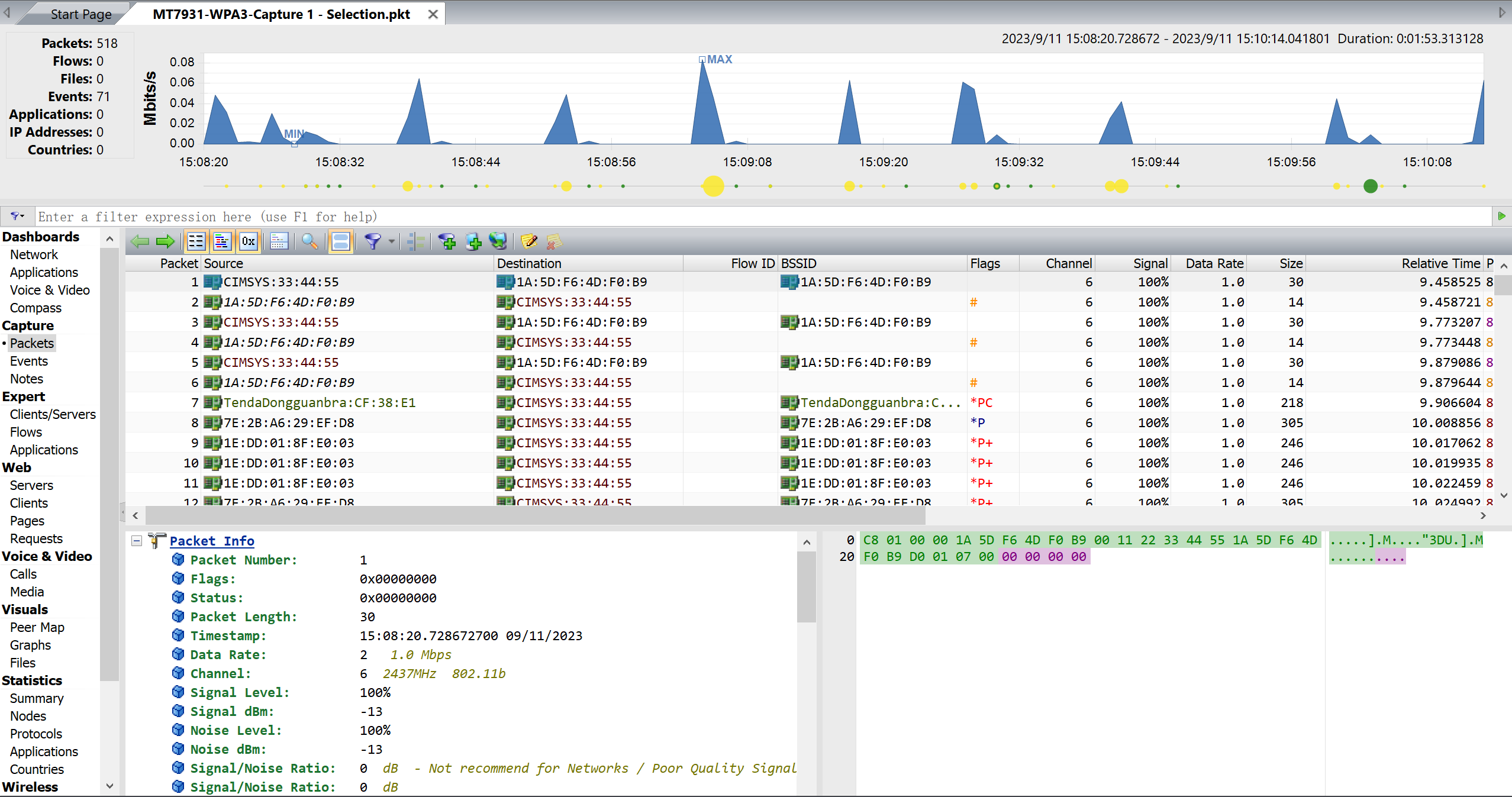

3. WiFi packet analysis

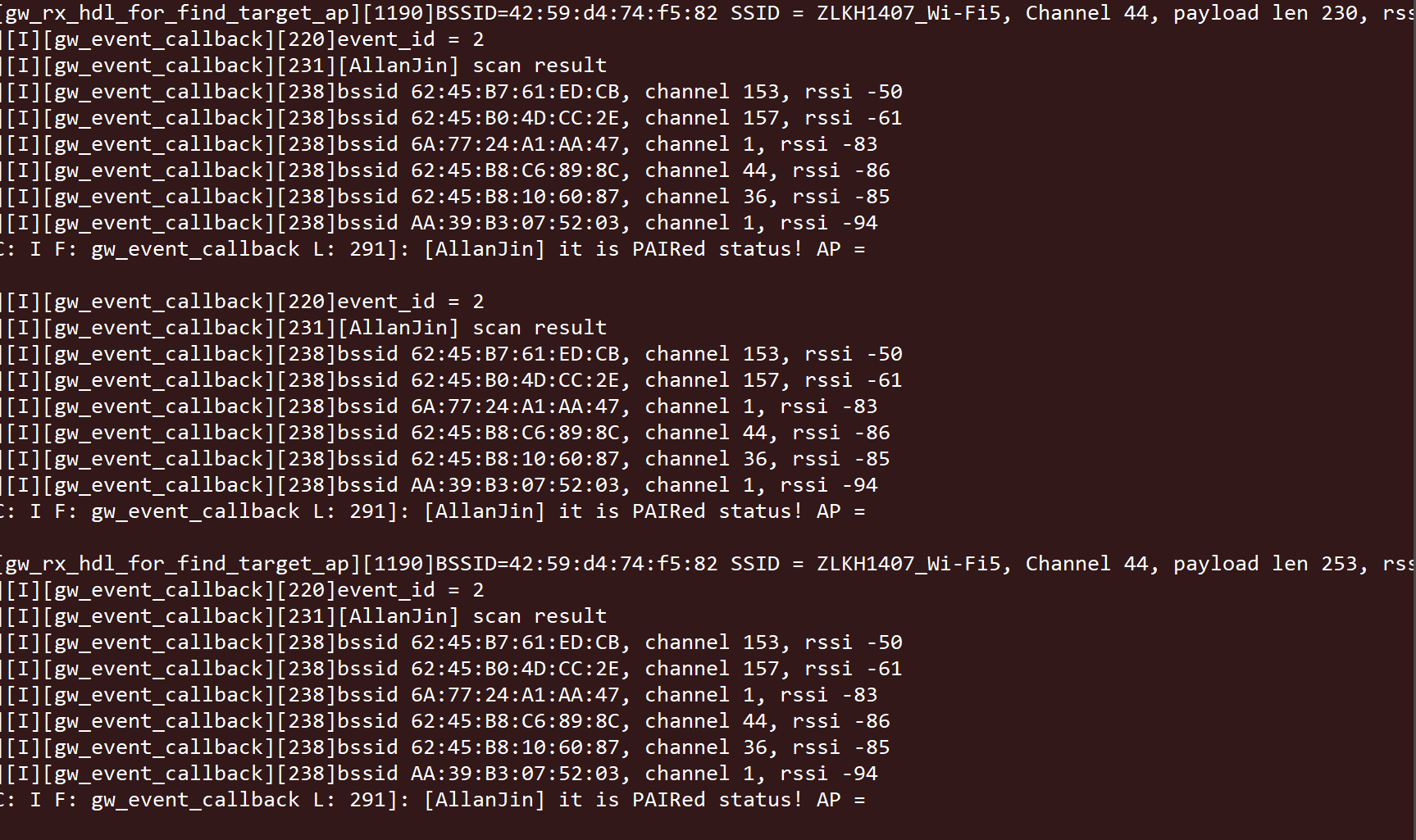

4. Debugging can track uart debug log

►Scenario application diagram

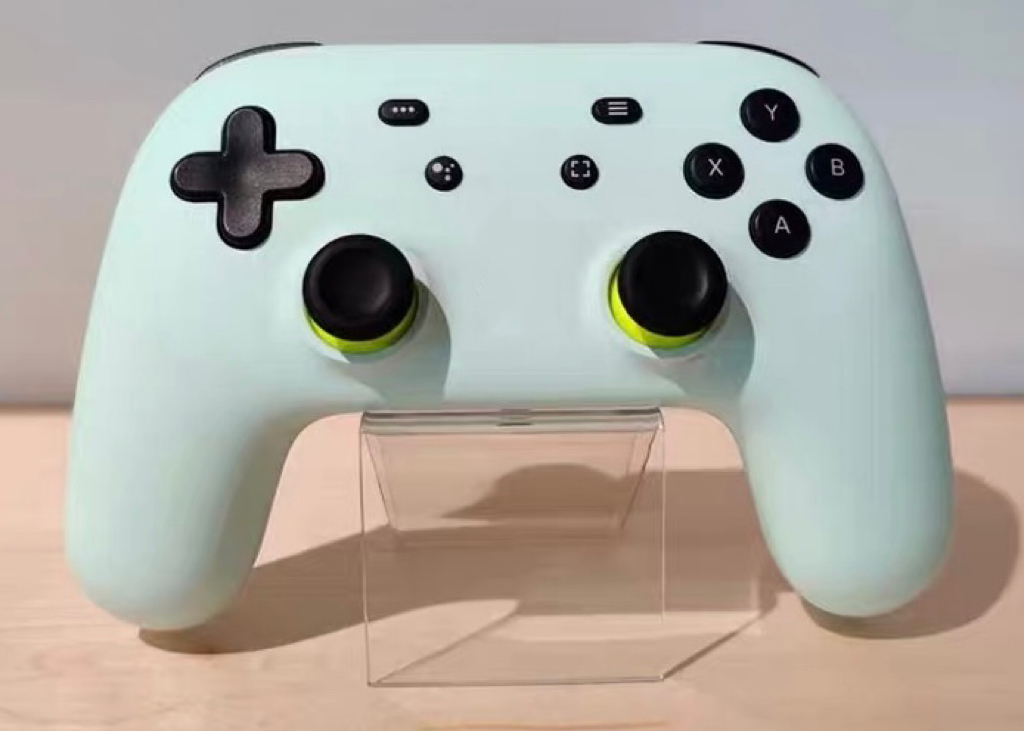

►Product Entity Diagram

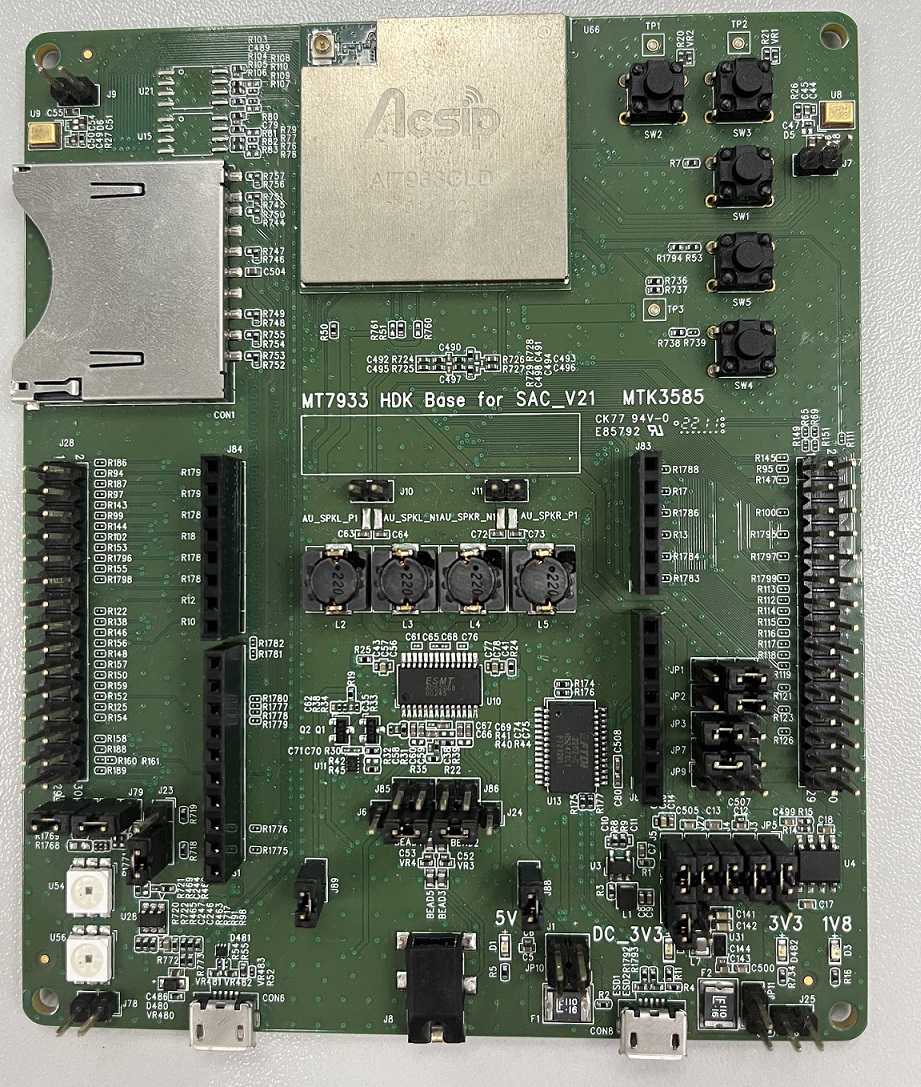

►Photos of display boards

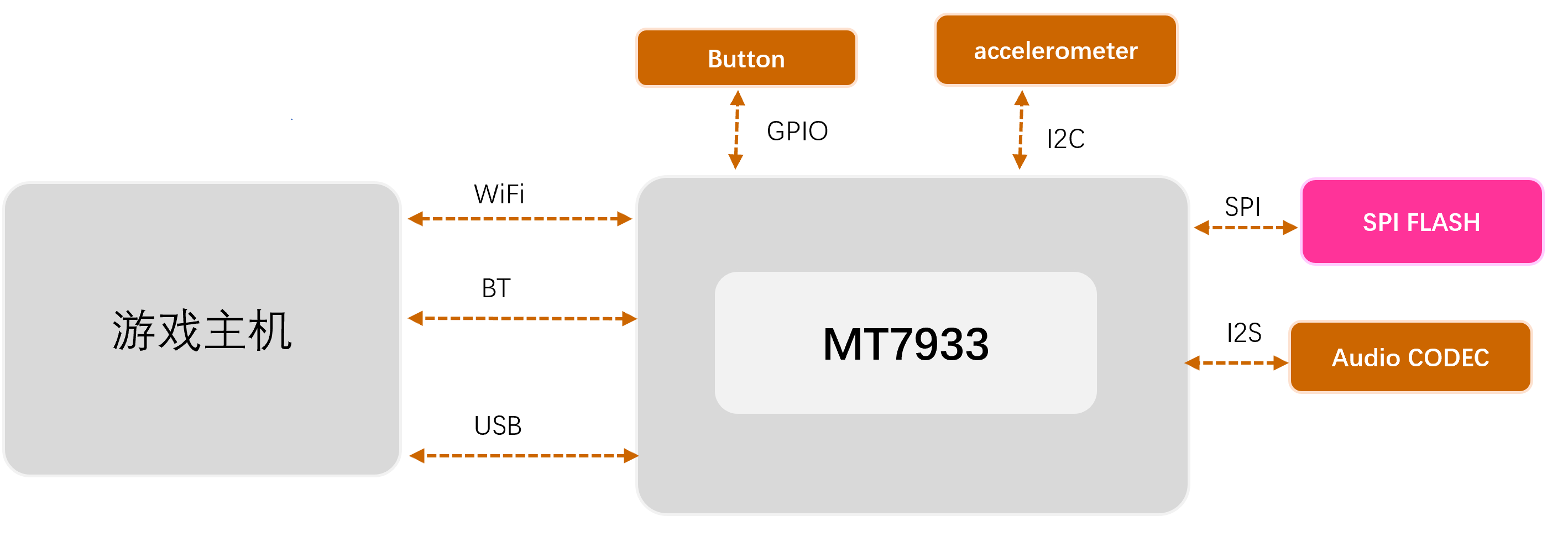

►Scenario block diagram

►Core technical advantages

1.Support WPA3 2.Support MU-MIMO RX 3.Support MCS0~8(256-QAM) in 2.4G/5GHz band 4.BT5.0 2M_PHY 5.Support TWT

►Solution specifications

1.IEEE 802.11 a/b/g/n/ac/ax 5GHz and 2.4GHz 2.BT5.0 3.ARM Cortex-M33 4. Embedded 1MB SRAM and 8MB UHS(Ultra High Speed) PSRAM
