Product description

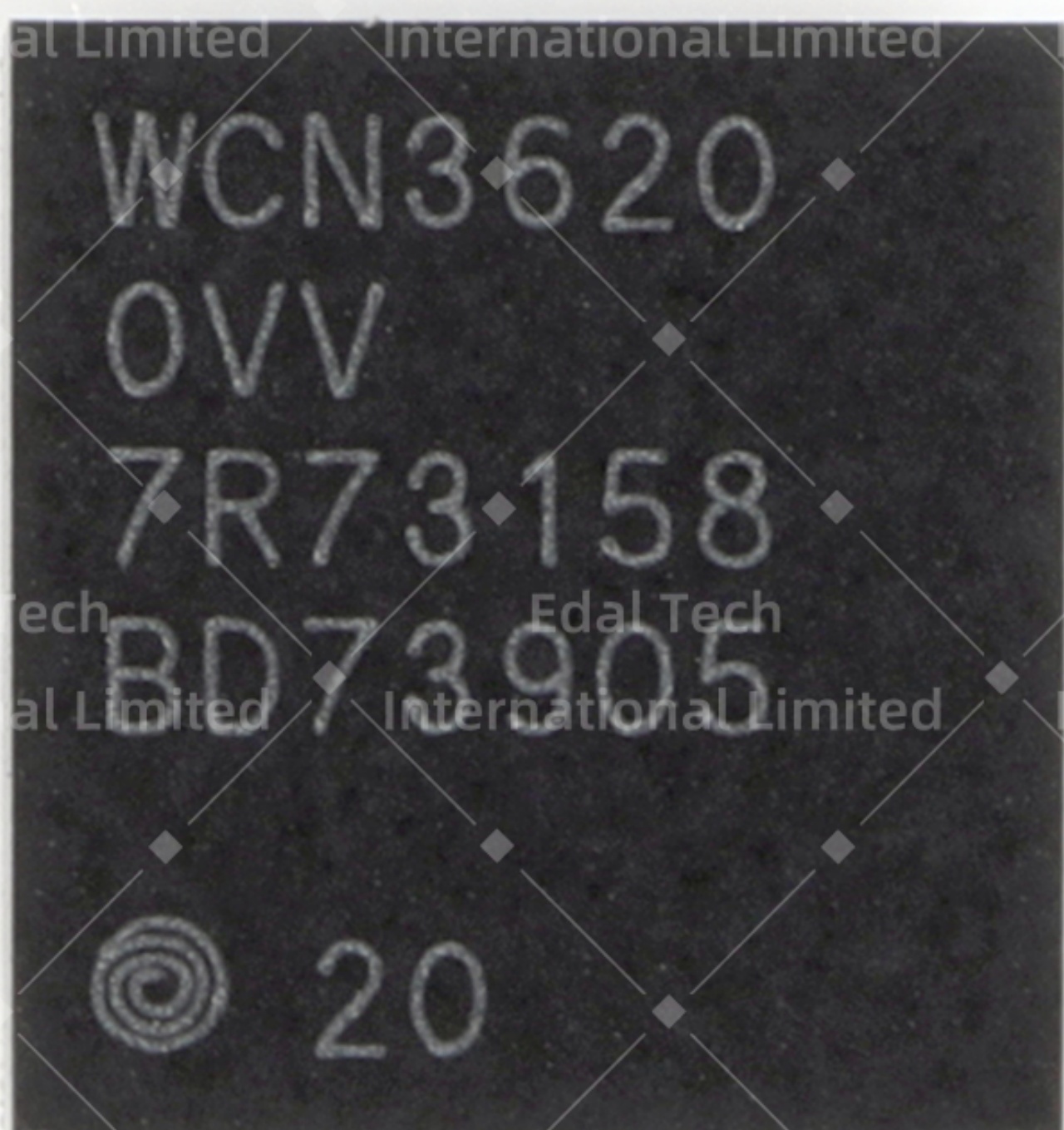

The Qualcomm WCN-3620-0-61WLNSP-TR-05-0 is a sophisticated wireless communication module designed to deliver high-performance connectivity for modern electronic devices. It supports dual-band Wi-Fi, allowing it to operate on both the 2.4 GHz and 5 GHz frequency bands. This dual-band capability enhances the module's ability to handle diverse network conditions and minimize interference, which is crucial for maintaining stable and fast wireless connections.
In addition to its Wi-Fi capabilities, the module includes Bluetooth support, which enables it to connect with various Bluetooth devices. This feature adds significant versatility, making the WCN-3620-0-61WLNSP-TR-05-0 suitable for a wide range of applications, from consumer electronics to IoT devices.
The module’s design emphasizes power efficiency, with optimized performance to ensure low power consumption during both active and idle states. This is particularly advantageous for battery-powered devices, where extending battery life is essential. The module also incorporates power-saving modes that further contribute to its energy efficiency by reducing consumption when not actively transmitting or receiving data.
With its compact form factor, the WCN-3620-0-61WLNSP-TR-05-0 can be easily integrated into devices where space is limited. Its integration with Qualcomm’s broader ecosystem enhances its performance and simplifies the design process for manufacturers by ensuring compatibility with other Qualcomm components.
Overall, the Qualcomm WCN-3620-0-61WLNSP-TR-05-0 represents a balance of high performance, power efficiency, and compact design, making it a versatile solution for a range of wireless communication needs in modern electronic devices.
Specification parameters
Wireless Standards:
Wi-Fi: Compliant with IEEE 802.11 a/b/g/n/ac (Wi-Fi 4 and Wi-Fi 5), providing support for a wide range of wireless networks and high-speed connectivity.
Bluetooth: Supports Bluetooth 4.0 or newer versions, enabling connectivity with a broad spectrum of Bluetooth-enabled devices.
Frequency Bands:
2.4 GHz Band: Suitable for traditional Wi-Fi networks and devices operating on this frequency.
5 GHz Band: Offers less interference and higher data rates, ideal for high-performance and high-bandwidth applications.
Power Specifications:
Typical Power Consumption: Optimized for low power consumption in both active and idle states to prolong battery life in portable applications.
Power Saving Features: Includes various power-saving modes to reduce energy consumption during periods of inactivity.
Physical Characteristics:
Form Factor: Compact size designed for integration into small devices, allowing for flexible application in different types of electronic devices.
Pin Configuration: Detailed pin configuration provided in the datasheet for connecting the module to a host system, ensuring reliable integration.
Operating Conditions:
Temperature Range: Built to operate within a specific temperature range, suitable for various environmental conditions.
Voltage Range: Operates within a defined voltage range, ensuring compatibility with a variety of power supply systems.
